Stainless Steel Wire Rope & Fittings

1 X 19 is inflexible and suitable for standing rigging or where it is not subjected to bending stress 316 grade has higher corrosion resistance th...

7 X 7 wire is flexible and is suitable handrails and catenary systems 304 grade is resistant to organic chemicals and wide range of inorganic chem...

7 X 19 is very flexible, suitable for running rigging, control cables & commercial fishing 316 grade has a high corrosion resistance    ...

7 X 7 wire is flexible and is suitable handrails and catenary systems   Part # Size (mm) Colour Finish Grade Outside Dia. (mm) ...

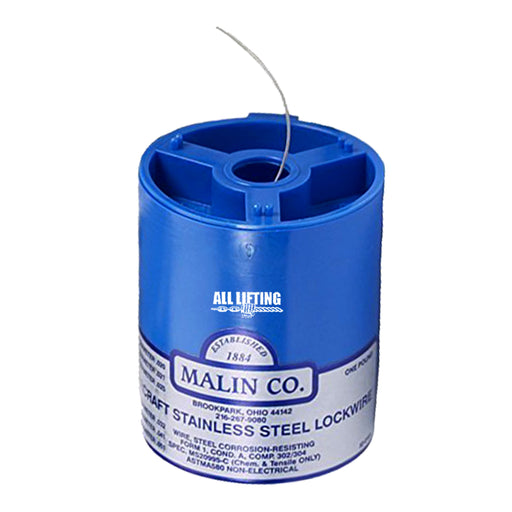

Locking tie wire Grade 304 stainless steel Supplied in dispenser   Code Size (mm) Approx Length 13WR-234664 0.5 283m 13WR-234...

Aluminium sleeve for wire rope sizes 1.5mm – 20mm Other sizes available at request

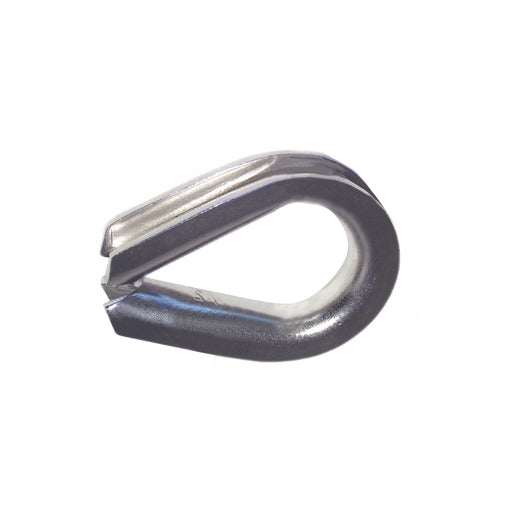

Stainless steel wire rope thimble Heavy duty  Grade 316 Sizes available 8-20mm Code ROPE SIZE (inch) C (mm) D (mm) A (mm) E (mm) ...

Aluminium sleeve for wire rope sizes 1.5mm – 60mm Other sizes available at request

Heavy duty Closed type Grade 316 stainless steel Code ROPE SIZE (mm) C D A E B 132344-10 10 67 13.5 28.5 10 51 ...

With ring attached to eye 4 bolt holes for attachment Grade 304 stainless steel plate Code D L B A H 13320-06 6 40 40 3...

Stainless steel bottle screw Toggle and toggle type Flexible attachment Removable pins both ends Grade 316 stainless steel **Not rated for liftin...

Swage stud Threaded terminal Grade 316 stainless steel  Code Wire Dia. (mm) Wire Dia. (INCH) Thread L1 L2 L3 Thread 137801-22...

Stainless steel lag screw Double threaded M8 and M10 sizes available Code A L1 L2 C D 1378311-08 M8 100 47 40 8 1...

Copper wire rope sleeve Sizes from  1.5mm - 22mm Used for swaging an eye on wire rope assemblies Other sizes available at request

Stainless steel terminal Toggle head Grade 316 stainless steel    Code Wire (mm) Dia. (inch) A L1 L2 L3 D3 137805-08E 8 ...

Often used to pull wire rope through pulleys  Other sizes and types available at request   Part # Size (mm) Type WRAOE911 9-1...

Available in a wide variety of designs to suit different applications including wire rope hauling, joining, re-roping cranes, air & hydraulic ...

Stainless steel Body only Grade 316 Please enquire for more information on this product  **Not rated for lifting applications** Code L A ...

Grade 304 stainless steel  Used to make eye's on the end of a wire rope Code ROPE SIZE (mm) C D A E B 13234-02 2 23 5 ...

Stainless steel swage stud Lag screw This screw uses left hand thread one end and right hand thread the other end Tension is gained while screwing...

Stainless steel angles Adjustable For round posts   Nominal Size (mm) Thread Size (mm) D (mm) D1 (mm) D2 (mm) From W (Degrees...

Stainless steel angle Adjustable For square posts   Nominal Size (mm) Thread Size (mm) D (mm) D1 (mm) D2 (mm) From W (Degrees...

Stainless steel architectural ball Used with internal threaded terminals or tensioners for angles/stairs Ball sizes 15mm, 20mm Grade 316 stainless...

Stainless steel washer Bevelled Regular and round types available For use on stairways where a through post fitting such as a tensioner is being u...

Stainless steel tensioner Allen key head Suits bolt sizes 5 – 10mm Grade 316 stainless steel   Part # Bolt Size (mm) D1 (mm) ...

Stainless steel plate Diamond shape Eye for attachment 4 bolt holes Grade 304 stainless steel    Code A B C D E F H 133213-...

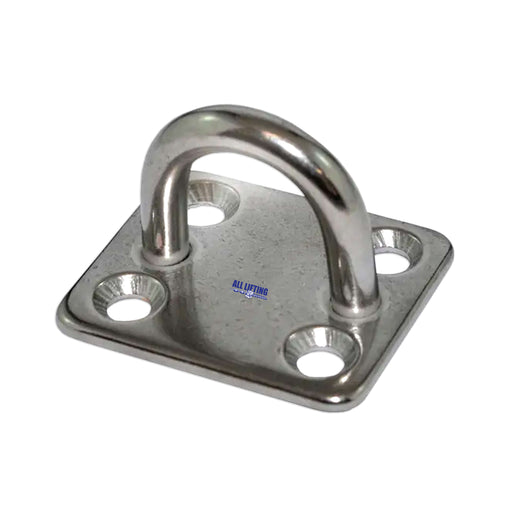

Stainless steel plate Eye for attachment 4 bolt holes Grade 304 stainless steel   Code D B A H C 13321-06 6 40 34 25 ...

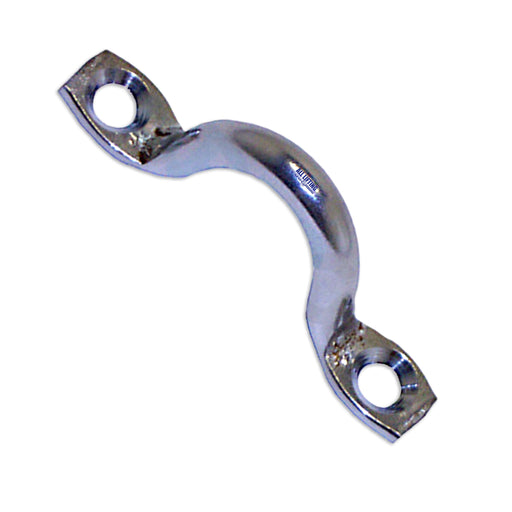

Stainless steel saddle Medium weight type Grade 316 stainless steel Used for balustrading Code D L W H Fastener Gauge 13322-05 ...

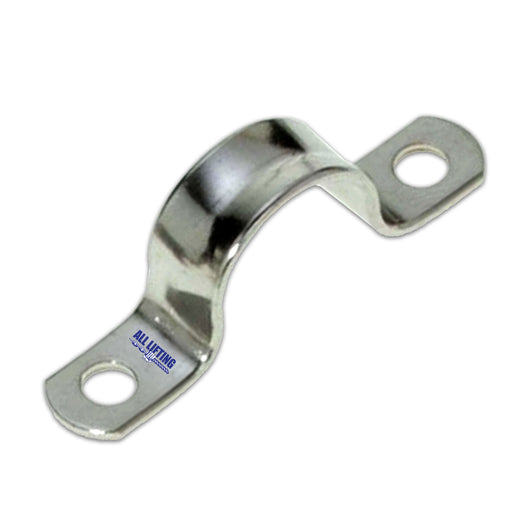

Stainless steel saddle Light weight type Used for balustrading Grade 316 stainless steel Code Width L W D H 13324-36 11 42 ...

Collared head Grade 316 stainless steel Code W D L1 L D2 133291-05060 5 5 70 33 11 133291-06080 6 6 87 47...

Grade 316 stainless steel  Code W D L1 L D2 133182-0660Y 5.2 6 57 35 6.2 133182-0660 6 6 60 40 6.3 ...

Suits wire rope 2mm – 25mm Grade 316 stainless steel  Applications: wire rope assemblies   Code ROPE SIZE (mm) B B1 B2 D1 H1 H2...

Stainless steel bottlescrew Jaw type with removable pin Swageless terminal Sizes available M6-M10 Please send an enquiry for more information on t...

Stainless steel turnbuckle With lock nuts Configurations available: eye and eye, hook and hook, hook and eye, jaw and jaw Grade 316 stainless stee...

Stainless steel adjustable stop Suits 3-4mm wire diameter **Not rated for lifting purposes** Code Nominal Size Rope Ø mm M mm d1 mm ...

Stainless steel bottle screw Jaw and jaw type With lock nuts Grade 316 stainless steel Removable pins each end Proof loading of this product avail...

Stainless steel bottle screw Toggle and swage stud type Grade 316 stainless steel Suits wire sizes 3mm-12mm  **Not rated for lifting purposes** ...

Stainless steel bottle screw Body only Grade 316 stainless steel Please send an enquiry for more information, pricing and availability on this pro...

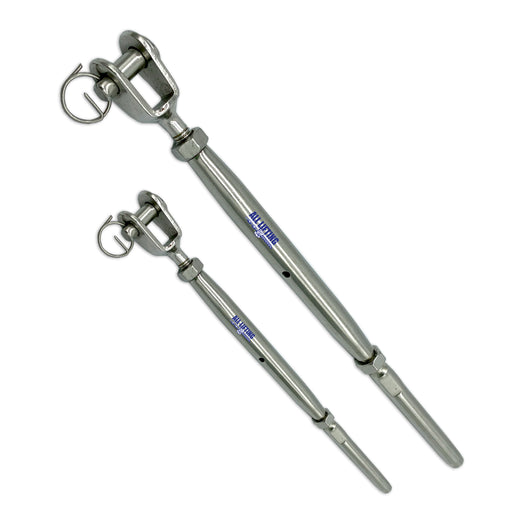

Stainless steel bottle screw Jaw and swage stud type Grade 316 stainless steel Removable pin Used for balustrading **Not rated for lifting applic...

Stainless steel terminal Cone head type Grade 304 stainless steel For swage onto 3mm wire Need more information on this product? Enquire here.   ...

Stainless steel terminal Flat head type Grade 316 stainless steel Suits wire size 3-4mm Need more information on this product? Enquire here.   ...

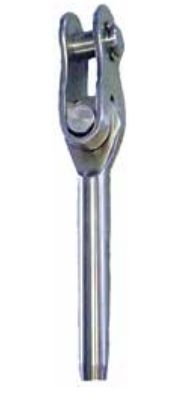

Stainless steel fork terminal Removable pin For swage onto wire rope sizes 3mm-16mm Other sizes available upon request Grade 316 stainless steel ...

Stainless steel terminal Toggle head Removable pin Grade 316 stainless steel  Code Wire (mm) Wire (inch) A D3 L1 L2 L3 1378...

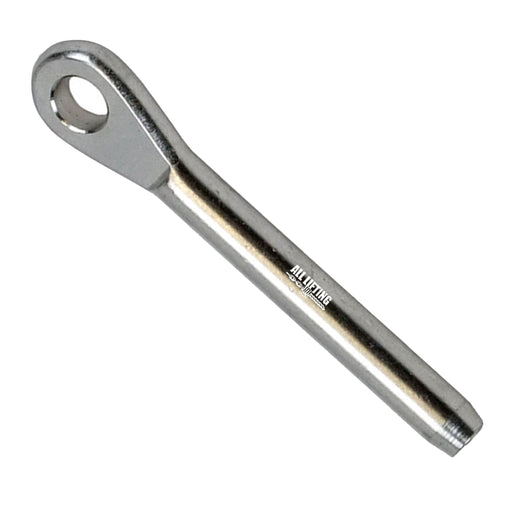

Eye terminal type For swage onto wire rope 2.5mm – 12mm Grade 316 stainless steel Code Wire (mm) Wire (inch) L1 L2 D1 D W 1...

High quality cutters Overall length 200mm Suits wire size 4mm max   Part # Max. Wire Size (mm) Length (mm) Weight (kg) SSCP-6...

Wire rope cutters for wire sizes up to 8mm High quality   Part # Max Wire Size (mm) Length (mm) Weight (kg) WRA70010 4 200 ....

Hand swaging tool Jaws are made from alloy steel, hardened and tempered Good quality tool with easy re-adjustments Various sizes to suit different...

Stainless steel terminal Swageless Removable pin Grade 316 stainless steel **Not rated for lifting applications** Code Wire Dia D3 L1 ...
