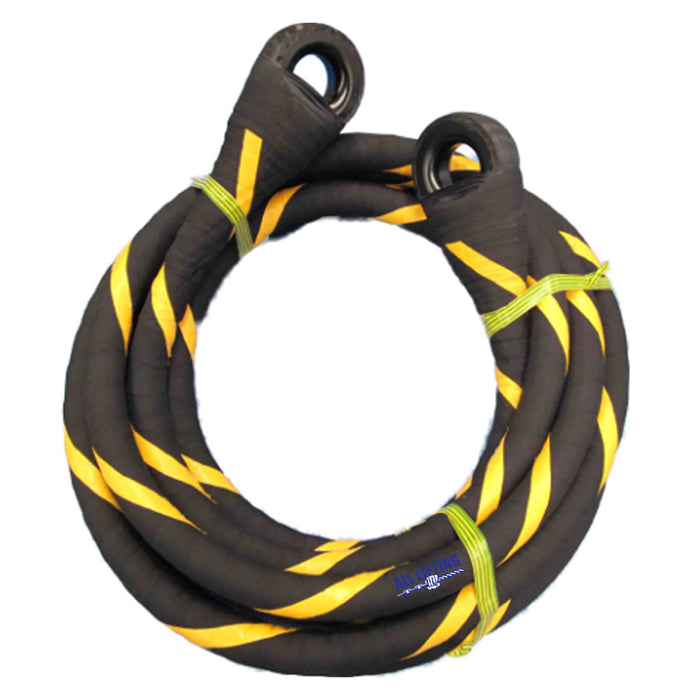

Black Snake Kevlar Recovery Strop
The endless parallel lay configuration of the KEVLAR® fibres, coupled with high strength steel eyes encased in a thick, rubber cover, creates lightweight, rugged and very high break strength strops. From 4 metres up to 20 metres in length and ranging from 10-400 tonnes break strength, Black Snake KEVLAR® Recovery strops are suitable for most recovery situations in mine operations and heavy duty applications. With over 18,000 KEVLAR® Recovery Strops produced, Black Snake KEVLAR® Recovery strops provide a practical and proven alternative to wire rope, chain or fibre rope/round-sling/webbing straps.
**NOT SUITABLE FOR SNATCH TYPE RECOVERIES**
- Ultra high strength to weight ratio and flexibility for easy use and handling
- Low elongation of 4% recoil properties from the KEVLAR® fibres and the thick rubber cover provide a safe energy damping feature in case of over - loading strop during recovery
- Abrasion/cut resistant rubber protects the inner Kevlar® fibres from the elements and keeps out oil, water, mud and dust allowing it to be virtually maintenance free
- Individual serial numbered and embedded RFID for full tracebility
- Custom end fittings, y strops, break strength and length can be made to customer requirements
- Pricing is based on standard Kevlar tow strop
**Please note this is a made to order item**
**Please note freight from Melbourne branch will be charged to your location**
** All attachments, shackles, hooks must have a greater minimum break than the recovery strop**
BREAK STRENGTH |
10 Tonne |
20 Tonne |
30 Tonne |
50 tonne |
70 Tonne |
100 Tonne |
6 Metre |
5Kg |
11Kg |
11Kg |
13Kg |
18Kg |
29Kg |
10 Metre |
7Kg |
16Kg |
16Kg |
20Kg |
28Kg |
40Kg |
15 Metre |
9Kg |
21Kg |
24Kg |
27Kg |
33Kg |
53Kg |
Maximum GVW |
6 tonne |
13 tonne |
20 tonne |
33 tonne |
46 tonne |
67 tonne |
Eye Type AS 1138 |
Thimble 22mm |
Thimble 28mm |
30t round eye |
50t round eye |
70t round eye |
100t round eye |
Recommended Coupling |
Grade s shackle 4.7t-8.5t Coupler 13/16mm |
Grade s shackle 6.5t – 12t Coupler 18/20mm |
Grade s shackle 6.5t – 17t Coupler 18/20mm |
Grade s shackle 12t-25t Coupler 22mm |
Grade s shackle 17-35t Coupler 26mm |
Grade s shackle 25-55t Coupler 32mm |
