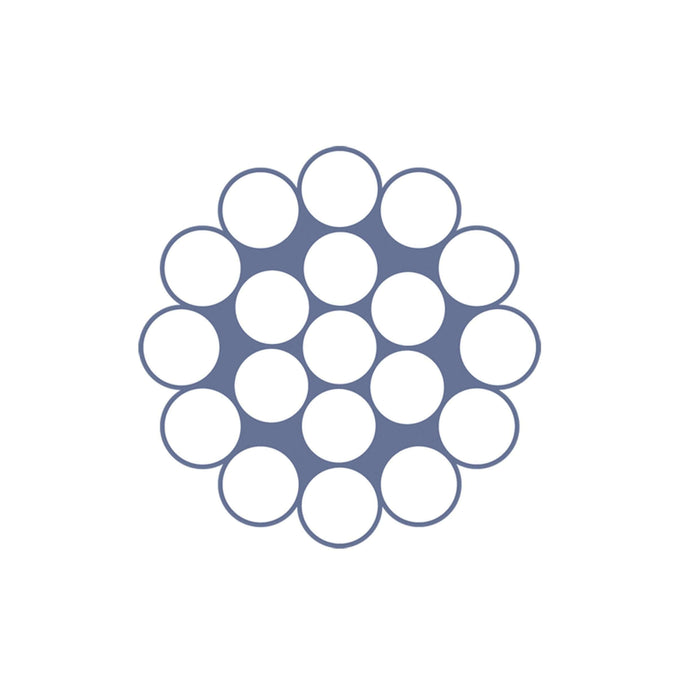

1 x 19 Stainless Steel Wire Rope

by All Lifting
Price on Application
  • 1 X 19 is inflexible and suitable for standing rigging or where the is not subjected to bending stress
  • 316 grade has higher corrosion resistance than 304 grade however has a lower breaking strain than 304 grade



Part # Size (mm) Min. Breaking Force (kN) Grade
WRS2119016 1.6 2.1 316
WRS2119020 2.0 3.3 316
WRS2119024 2.4 4.7 316
WRS2119030 3.0 7.4 316
WRS2119032 3.2 8.4 316
WRS2119040 4.0 13.1 316
WRS2119048 4.8 19 316
WRS2119050 5.0 20.6 316
WRS2119060 6.0 29.7 316
WRS2119072 7.2 42.7 316
WRS2119080 8.0 52.8 316
WRS2119095 9.6 76 316
WRS2119111 11.1 99.8 316
WRS2119127 12.7 132.9 316
WRS2119143 14.3 168.5 316
WRS1119015 1.5 2.1 304
WRS1119020 2.0 3.7 304
WRS1119024 2.4 ? 304
WRS1119030 3.0 8.3 304
WRS1119032 3.2 8.3 304
WRS1119040 4.0 14.8 304
WRS1119048 4.8 22.2 304
WRS1119050 5.0 23.2 304
WRS1119060 6.0 33.5 304
WRS1119080 8.0 59.5 304
WRS1119100 10.0 93 304
WRS1119160 16.0 238 304
