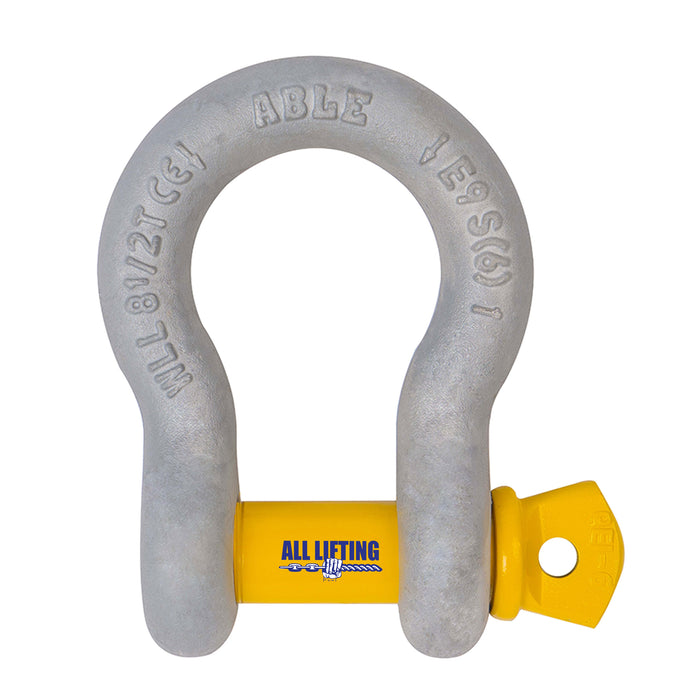

Rated Grade S Screw Pin Bow Shackle

by All Lifting
$2.01
Shipping & Handling
    Rated shackles are most commonly used for lifting applications, providing connections to chain, wire rope and other rated fittings within the marine, agricultural, mining, transport and engineering industries.
    • Conforms to AS2741
    • Marked with working load limit, grade, batch number, nominal size and supplier identification
    • Hot dip galvanised
    • Suitable for lifting & towing applications
    • Other sizes available at request



    Part # Nominal Size (mm) WLL  (t) Weight (kg)  H (mm)  3 (mm)   C (mm)  1 (mm) E (mm) 2 (mm) G (mm) L (mm) H1 (mm) C (mm) H (mm)
    06BS05T 6 0.5 0.05 13 8 29 6.8 20 17.5 33.6 31.75 38 3.3 1.5
    06BS075T 8 0.75 .09 13.5 9.5 31 8 21.5 21 37.5 35.5 42.5 3.3 1.5
    06BS01T 10 1 .14 17 11.2 36.5 10 26.2 25 46.20 41.5 53.5 3.3 1.5
    06BS01.5T 11 1.5 .22 18.5 12.7 42.9 11.3 29.5 27 52.1 48 59 3.3 1.5
    06BS02T 13 2 .33 20.6 15.8 47.8 12.7 33.3 31 58.7 54.5 70 3.3 1.5
    06BS03.2T 16 3.25 .62 27 19 60 16 43 40 75 68 87.5 6.35 1.5
    06BS04.7T 19 4.75 1.07 32 22 71.5 19 51 48 89 81 101 6.35 1.5
    06BS06.5T 22 6.5 1.64 37 25 84.5 22 58 54 102 95 116 6.35 1.5
    06BS08.5T 25 8.5 2.3 43.5 28 96.3 26.5 68.5 60 121.5 106 135.5 6.35 1.5
    06BS09.5T 29 9.5 3.36 48 32 109 29 75 68 133 121.5 145 6.35 1.5
    06BS12T 32 12 4.31 53 35 120.5 32 84 76 148 134 160 6.35 1.5
    06BS13.5T 35 13.5 6.01 59 38 134 35 94 84 164 148 178 6.35 3.3
    06BS17T 38 17 8.03 62 42 148.5 38 99 92 175 166 194 6.35 3.3
    06BS25T 44 25 13.79 75 50 178 45 128 106 218 192 228 6.35 3.3
    06BS35T 51 35 20.43 84 56 197 52 148 122 252 212 255 6.35 3.3
    06BS55T 63 55 40 107 70 269.50 63.5 186 145 313 284 317 6.35 3.3
