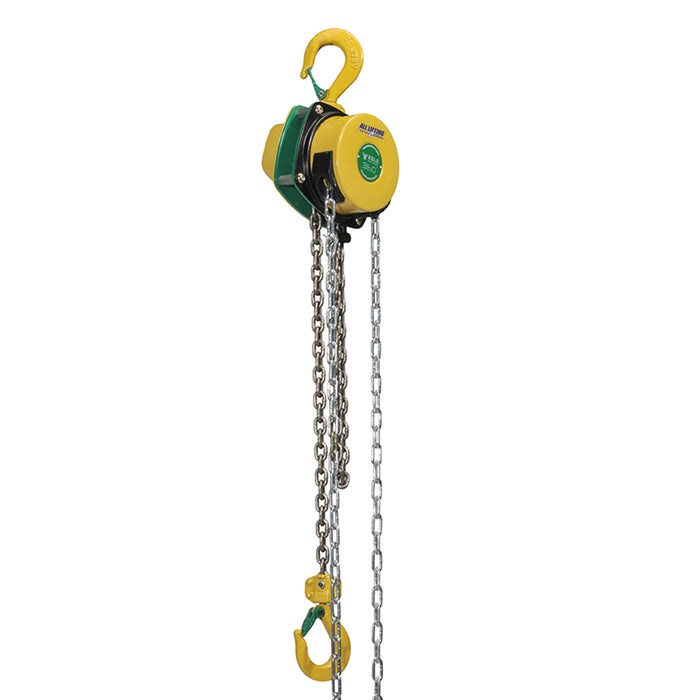

360 Degree Rotation Chain Hoist
by All Lifting
Price on Application
- 360 degrees rotating hand chain guide allows hoist operations from various angles
- Allows the operator to stay out of the danger zone
- Premium brake system ensures safe operation, low maintenance, and is extremely quiet
- Enclosed housing allows outdoor use
- Hardened load chain for optimum strength, flexibility, and long life
- Sealed roller bearings
- Forged swivel hooks and latches prevent chain twisting
- Complies with AS1418.2
- Non-stock item
Designed for heavy industrial applications, ideal for underground mining.
| WLL (t) | Lift (m) | Net Weight (kg) | Hand Chain Pull to Lift Rated Load (kg) | Hand Chain Overhauled to Lift Load One Foot (m) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| 1 | 3 | 13.9 | 25 | 14.93 | 355.6 | 22.2 | 14.3 | 14.3 | 176 | 155.6 |
| 1 | 6 | 15.8 | 25 | 14.93 | 355.6 | 22.2 | 14.3 | 14.3 | 176 | 155.6 |
| 2 | 3 | 21.6 | 32 | 21.64 | 395 | 30 | 20.6 | 20.6 | 203 | 182.5 |
| 2 | 6 | 24.8 | 32 | 21.64 | 395 | 30 | 20.6 | 20.6 | 203 | 182.5 |
| 3 | 3 | 30.6 | 35 | 26.51 | 520 | 38 | 25.4 | 25.4 | 224 | 220 |
| 3 | 6 | 35.9 | 35 | 26.51 | 520 | 38 | 25.4 | 25.4 | 224 | 220 |
