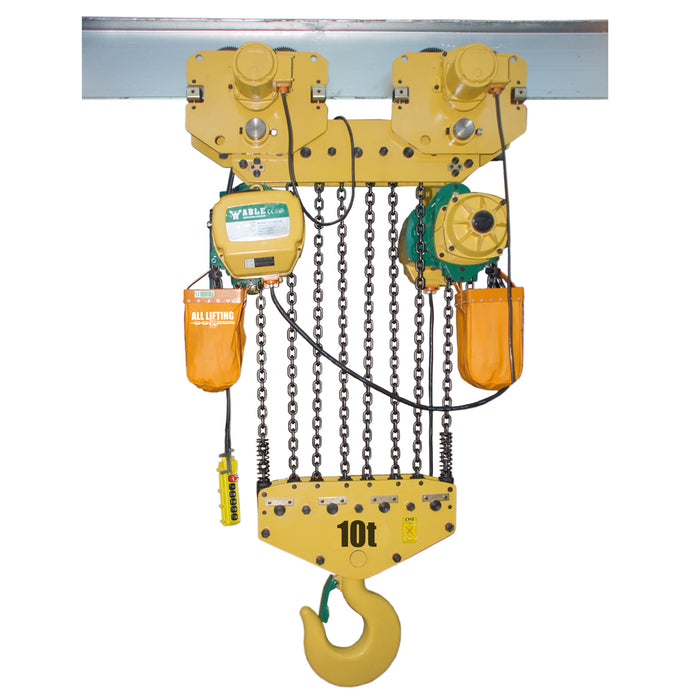

ALS Electric Chain Hoist with Electric Trolley 10t

by All Lifting
Price on Application
  • Heavy duty electric chain hoist
  • Ideal for heavier lifting applications
  • Electric Trolley for moving the load
  • Pendant attached



Additional Information

Lifting Height (m)

3, 9



Capacity (t) Lifting Height (m) Lifting Speed (m/min) Lifting Motor Power (kN) Lifting Motor Rotation Speed (r/min) Lifting Motor Phases Lifting Motor Voltage (V) Lifting Motor Frequency (Hz/s) Operating Motor Power (kw) Operating Motor Rotation Speed (r/min) Operating Motor Speed (r/min) Operating Motor Phases I-Beam (mm)
10 3 2.7 3.0X2 1440 3 220-440 50 0.75 1440 44501 3 150-220
10 9 2.7 3.0X2 1440 3 220-440 50 0.75 1440 44501 3 150-220



Capacity (t) Lifting Height (m) H (mm) A (mm) B (mm) E (mm) I (mm) J (mm) K (mm) L (mm) M (mm) N (mm) W (mm) U (mm) R (mm) T (mm) Chain Dia. (mm)
10 3 1190 630 315 890 70 36 85 80 85 55 366 191 231 142 11.2
10 9 1190 630 315 890 70 36 85 80 85 55 366 191 231 142 11.2
