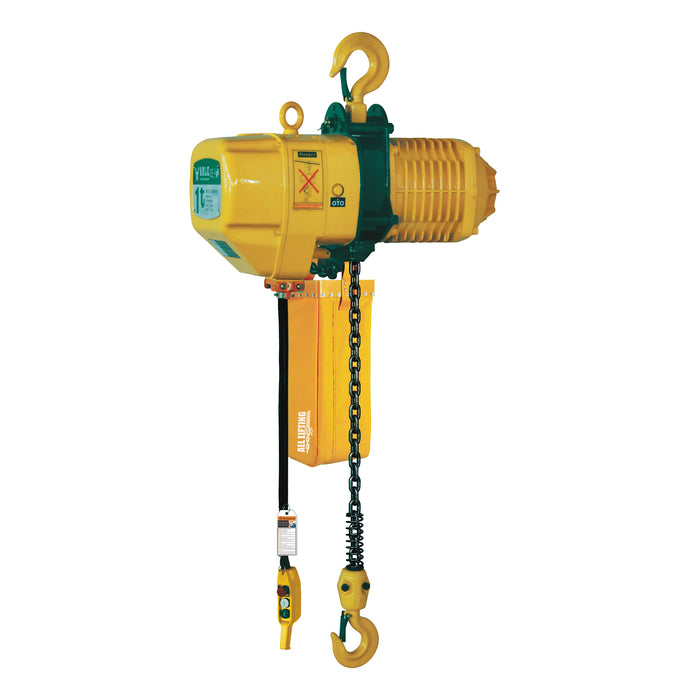

ALS Electric Single Phase Chain Hoist
by All Lifting
Price on Application
- Insulation Grade F
- Control voltage 24V
- Power supply: 1p/220V,50Hz
- Working level M4
- Excellent solution for efficient lifting applications
- Fast lifting speed, convenient operation and professional appearance
- Wireless remote controller optional extra
Additional Information
| Capacity (t) |
0.25, 0.5, 1, 2, 3 |
|---|---|
| Lifting Speed (m/min) |
8, 4, 7, 6, 3, 2 |
| Capacity (t) | Test Load (t) | Standard Lift (m) | Lifting Speed (m/min) | Motor Power (kw) | Spec. of Load Chain | Chainfall No. | Min. Distance Between Hooks (mm) | Net Weight (kg) |
| 0.25 | 0.38 | 3 | 8 | 0.45 | Dia. 5 x 15 | 1 | 430 | 22 |
| 0.5 | 0.75 | 3 | 4 | 0.45 | Dia. 5 x 15 | 2 | 450 | 25 |
| 0.5 | 0.75 | 3 | 7 | 0.8 | Dia. 7.1 x 21 | 1 | 500 | 55 |
| 1 | 1.5 | 3 | 6 | 1.2 | Dia. 7.1 x 21 | 1 | 520 | 60 |
| 2 | 3 | 3 | 3 | 1.2 | Dia. 7.1 x 21 | 2 | 630 | 65 |
| 3 | 4.5 | 3 | 2 | 1.2 | Dia. 7.1 x 21 | 3 | 710 | 70 |
| Capacity (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| 0.25 | 210 | 210 | 116 | 104 | 262 | 24 |
| 0.5 | 210 | 210 | 92 | 124 | 262 | 24 |
| 0.5 | 245 | 245 | 158 | 142 | 350 | 34 |
| 1 | 245 | 245 | 158 | 142 | 350 | 34 |
| 2 | 245 | 245 | 124 | 176 | 350 | 40 |
| 3 | 245 | 245 | 124 | 176 | 350 | 45 |
