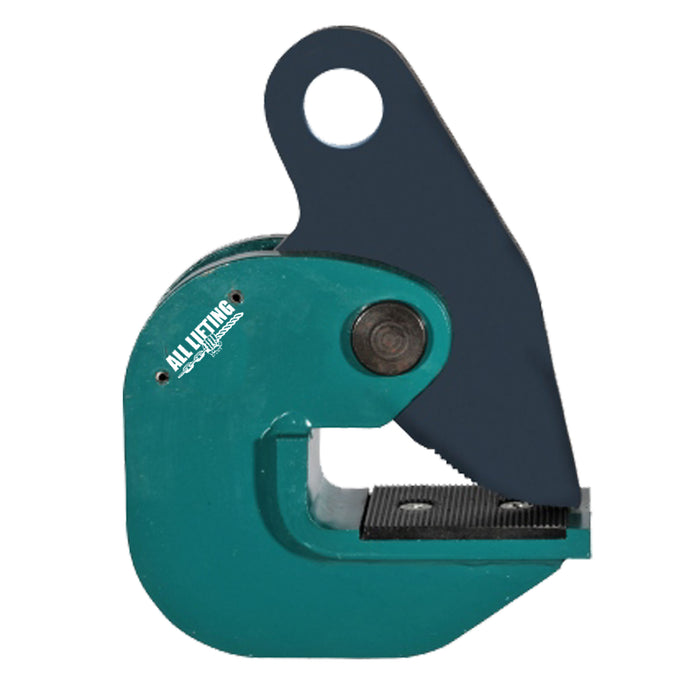

Horizontal Plate Clamp
by All Lifting
$335.92
- Wide variety of jaw openings available
- Used for lifting and transfer ina horizontal position of non-sagging materials or bundles of non-sagging material
- Must be used in pairs or more
- Other sizes and capacities available at request
**Please note colour and dimensions may vary depending on manufacturer*
|
Code |
W.L.L (per paid) |
Jaw Opening Max (mm) |
A (mm) |
B Max (mm) |
C (mm) |
D (mm) |
E (mm) |
|
10HPC015 |
1500kg |
50 |
0-50 |
127 |
100 |
218 |
30 |
|
10HPC030 |
3000kg |
50 |
0-50 |
220 |
110 |
270 |
36 |
|
10HPC050 |
5000kg |
60 |
0-60 |
260 |
130 |
315 |
40 |
