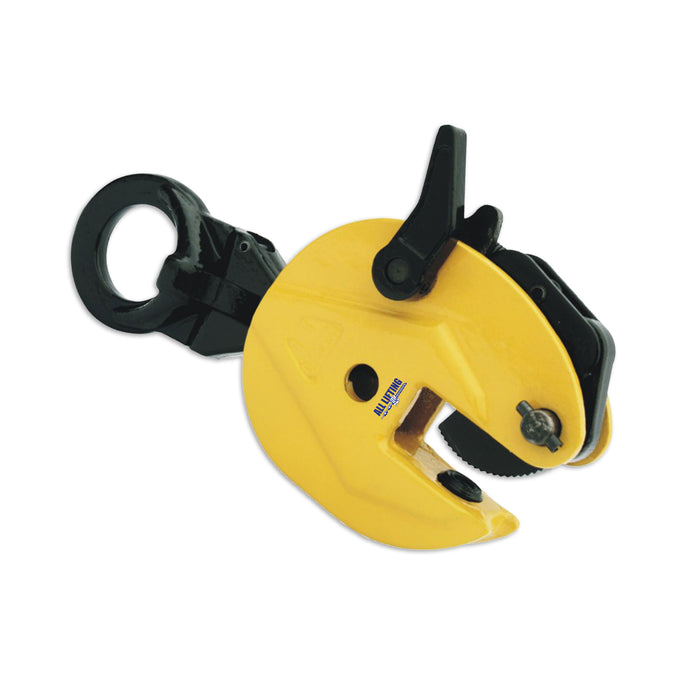

Universal Plate Lifting Clamp

by All Lifting
$151.69
Shipping & Handling
  • Designed to ensure that the load can be lifted and turned, while ensuring the load is positively retained
  • Wide range of uses, fitted with a hinged hoisting eye which can move and lift in all directions
  • Fitted with special hook-up facilities to enable easy fitment of the clamp in horizontal position
  • Greater jaw aperture, which enables plates of varying thickness to be lifted with the same clamp
  • Fitted with a safety latch and double locking device

**Please note colour and dimensions may vary depending on manufacturer**

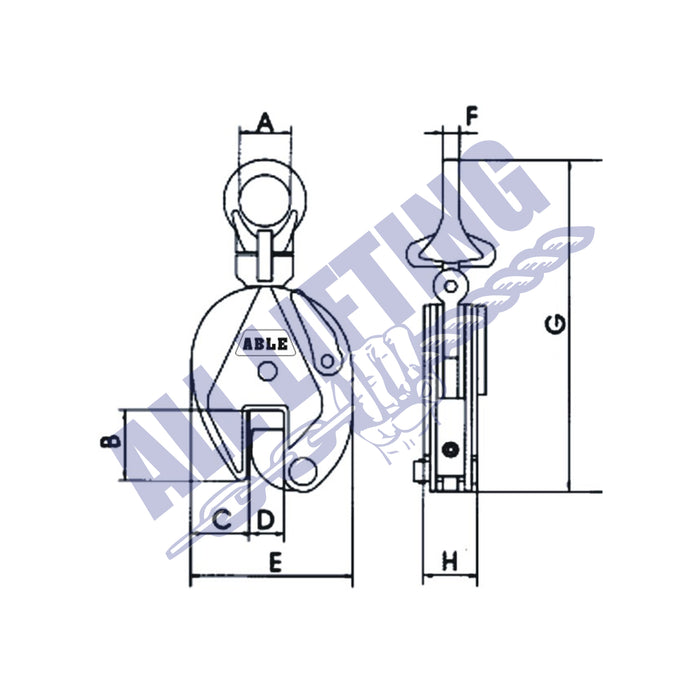

Code

W.L.L (kg)

A (Jaw Opening) (mm)

B (mm)

C (mm)

D (mm)

E (mm)

10UPC005

500

0-15

105

45

218

30

10IPC007

750

0-15

105

45

218

30

10UPC010

1000

0-20

145

63

305

48

10UPC020

2000

0-25

175

68

368

68

10UPC030

3000

0-28

218

90

395

74

10UPC050

5000

0-32

268

120

478

80
