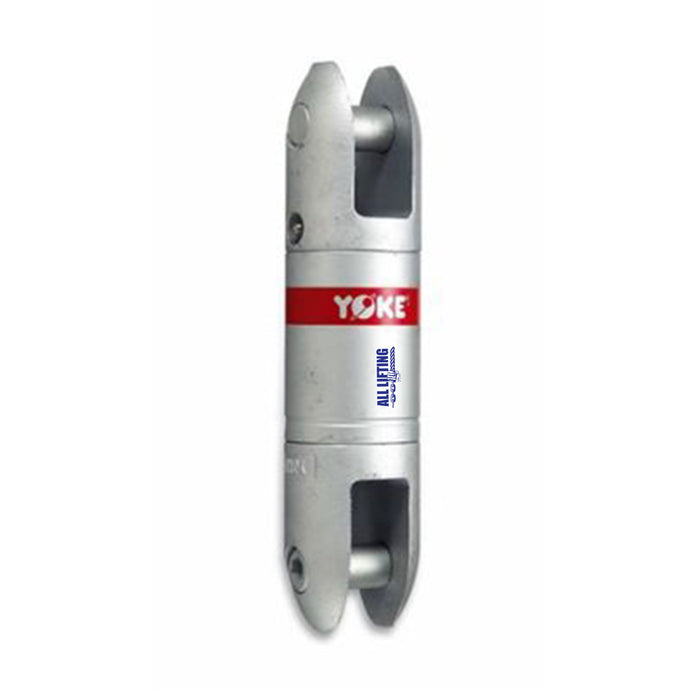

Bearing Swivel Bullet Style Jaw and Jaw
by All Lifting
$3,933.95
- Zinc plated for corrosion resistance and longer life
- Designed for low-starting torque and high rotation speed
- Applications: Lifting and wire rope assemblies
Need more information on this product? Enquire here.
*Wire Line Size
`Net Weight
| Part # | Price Inc GST | Size (mm)* | WLL (t) | B (mm) | K (mm) | L (mm) | C (mm) | A (mm) | D (mm) | H (mm) | NW` (kg) |
| ACSSW41190 | $269.28 | 6 | 0.75 | 32 | 103 | 126 | 12 | 15 | 10 | 22 | 0.5 |
| ACSSW41191 | $359.04 | 10 | 1.5 | 40 | 112 | 144 | 16 | 18 | 11 | 26 | 0.8 |
| ACSSW41192 | $495.44 | 13 | 3 | 51 | 159 | 203 | 23 | 23 | 16 | 31 | 2 |
| ACSSW41193 | $691.68 | 16 | 5 | 64 | 200 | 262 | 31 | 32 | 22 | 37 | 3.9 |
| ACSSW41194 | $880.88 | 19 | 8.5 | 76 | 242 | 312 | 35 | 37 | 25 | 50 | 6.7 |
| ACSSW41195 | $1,594.56 | 22 | 10 | 102 | 317 | 408 | 46 | 42 | 38 | 53 | 18.6 |
| ACSSW41196 | $1,819.84 | 25 | 15 | 108 | 317 | 408 | 46 | 48 | 38 | 56 | 19.9 |
| ACSSW41197 | $3,576.32 | 32 | 25 | 132 | 374 | 495 | 61 | 62 | 51 | 69 | 36.5 |
