Cast Iron Wheels for Trolleys

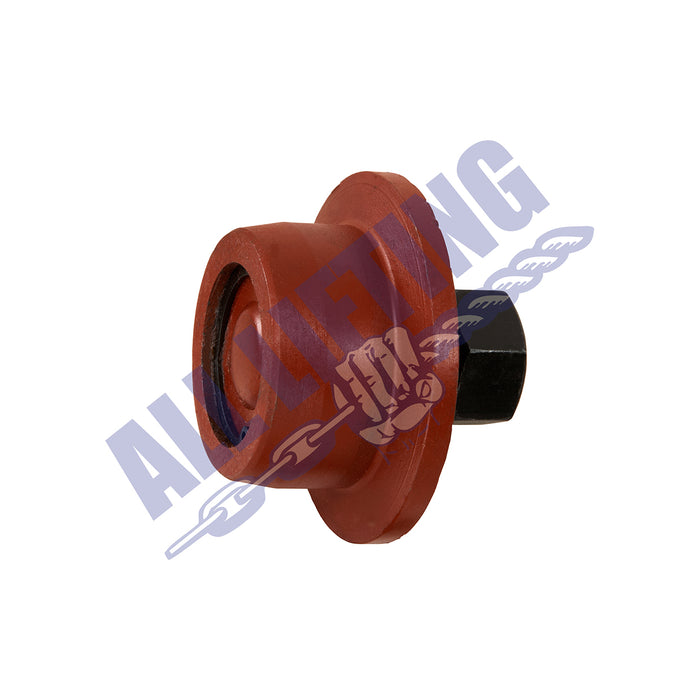

This single flanged plain trolley wheel is designed from 250kg to 10tonne capacities (over 4 wheels). Each wheel has a machine cut tread for smooth running on rolled steel joists, universal columns or universal beams. Supplied in high quality cast iron, these trolley wheels are complete with bearings, knurled axle nut, dust cover and circlip.
**Please note may not fit all brand trolleys**
Complies to AS 1418.2
*non-knurled axle, supplied with sellok pin
|

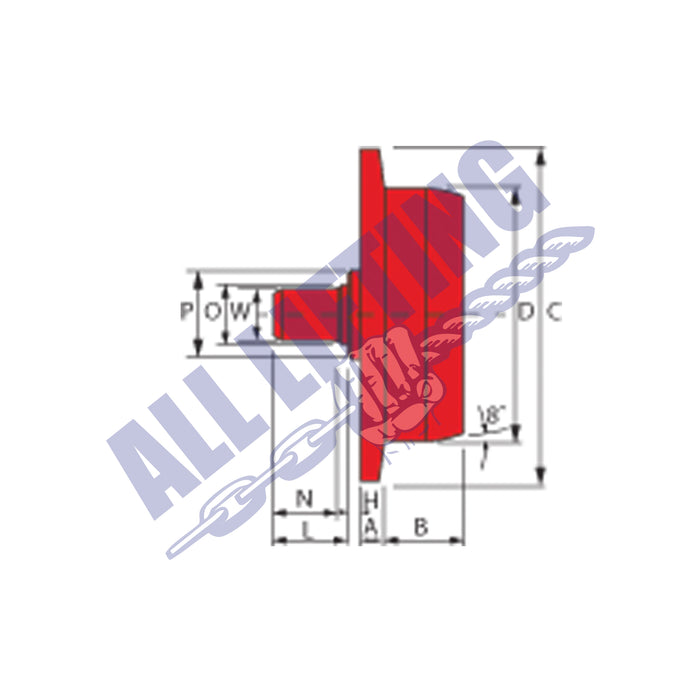

Code |
Capacity (on 4 wheels) |
D (mm) |
A (mm) |
B (mm) |
C (mm) |
W (mm) Thread |
H (mm) |
L (mm) |
N (mm) |
P (mm) |
O (mm) |
|
TBA |
250kg* |
48 |
5 |
14 |
60 |
M12 |
1.5 |
17 |
14 |
22 |
12 |
|
TBA |
500kg |
58 |
8 |
27 |
82 |
M20 |
3 |
27 |
22 |
30 |
20 |
|
TBA |
1 tonne |
88 |
8 |
27 |
116 |
M20 |
3 |
27 |
22 |
30 |
20 |
|
10XTW49479 |
2 tonne |
100 |
8 |
32 |
133 |
M24 |
3 |
33 |
25 |
33 |
24 |
|
10XTW49480 |
3 tonne |
130 |
8 |
37 |
159 |
M30 |
3 |
40 |
30 |
36 |
30 |
|
TBA |
5 tonne |
155 |
10 |
43 |
190 |
M36 |
3 |
49 |
35 |
45 |
36 |
|
10XTW49482 |
10 tonne* |
195 |
12 |
48 |
232 |
M42 |
21 |
61 |
43 |
75 |
42 |
