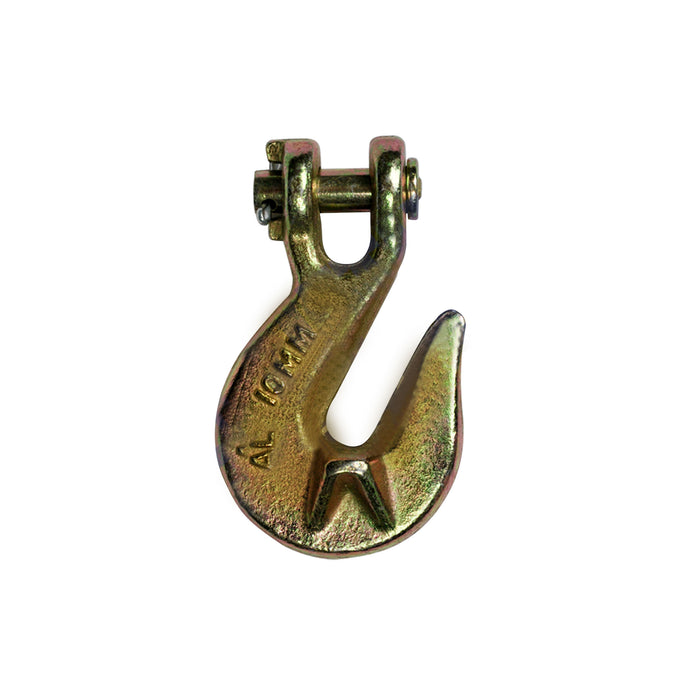

Clevis Grab Hook Grade 70
- Manufactured from dropped forged steel quenched and tempered and gold zinc plated. Comply with AS 4344.
- Safety Note: Grade 70 should ONLY be used for lashing and dragging, not for lifting.
Part # | Chain Size (mm) | Lashing Capacity (kg) | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | T (mm) | |
12HG06 | 6 | 2300 | 0.23 | 77 | 8.5 | 21 | 8.5 | 18.5 | 24.5 | 10 | |
12HG08 | 8 | 3800 | 0.35 | 95 | 12 | 23 | 11.5 | 24.5 | 31.5 | 11.5 | |
12HG10 | 10 | 6000 | 0.57 | 112 | 13 | 28 | 12.5 | 29 | 40 | 13 | |
12HG13 | 13 | 9000 | 0.92 | 136 | 16 | 32 | 16.8 | 44 | 43 | 16 |
