Commercial-R-Clips-All Lifting
Commercial-R-Clips-Dimensions-all-lifting

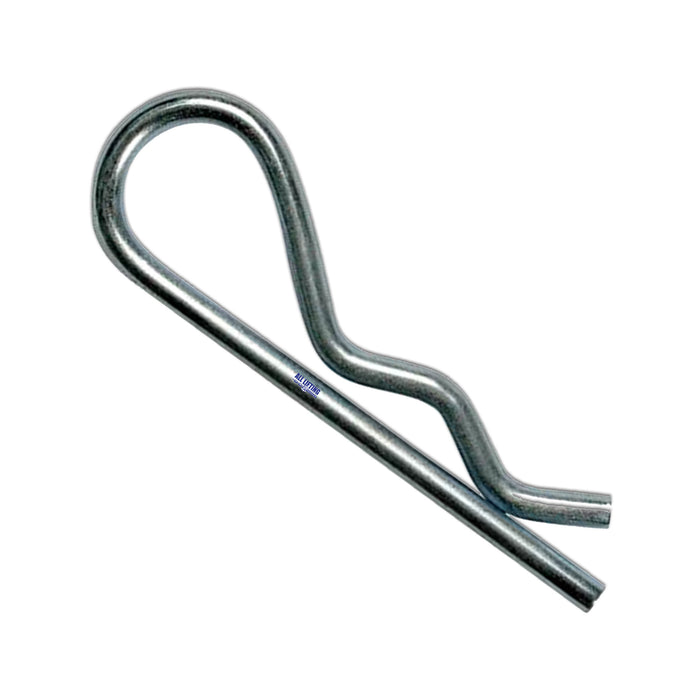

Commercial R Clips

by All Lifting
$0.36
Shipping & Handling
  • Commonly used as a removable securing pin for shafts
  • Pin sizes from 3mm to 6mm available
  • Made from low carbon steel and zinc plated
  • NOT FOR LIFTING APPLICATIONS



Part # Description D (mm) L (mm) H (mm)
SPA701203 3mm Wire Suit 10-12mm Shaft 3 67 20
SPA701204 4mm Wire Suit 12-22mm Shaft 4 88 28
COM01105 5mm Wire Suit 16-27mm Shaft 5 106 35
COM01106 6mm Wire Suit 19-32mm Shaft 6 120 44
