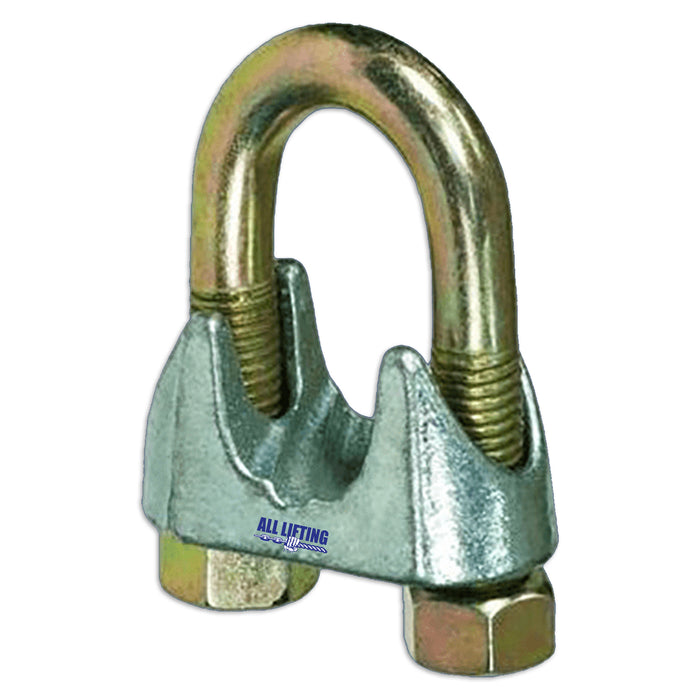

Commercial Wire Rope Grip

by All Lifting
$0.33
  • Wire rope grips are used to form an eye where the finished length is not known
  • Ideal for use in guying and catenary systems
  • Not to be used for lifting



Part # Size (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
14300 1.6-2 9.5 12 12.5 5 10 20.5 18.5
14302 3 11 14 14 5 10.8 22 20
14306 4-5 1435 15 16.5 6 13 26 24
14308 6 17 18.5 20 8 15 32 31.5
14310 8 18.3 20 22 8 16 35 34
14312 10 22.5 22 27 10 22 40.5 41.8
14316 12-13 27 26 33 11 23.3 49 51
14320 14 30 27.5 35 13 26 54 54
14326 19-20 34.5 30 42 14 32 59.5 68.5
14330 25 45.5 38 55 16 41 75 87.5
