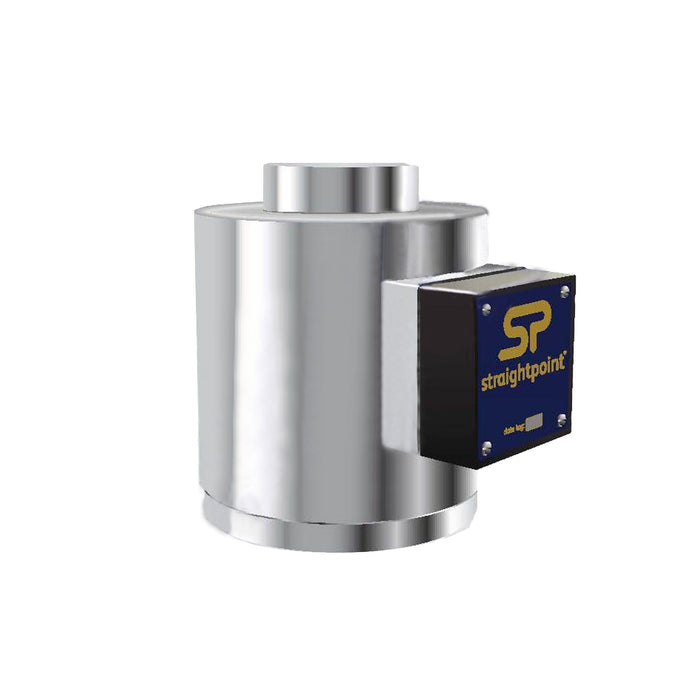

Compression Loadcell

by All Lifting
Price on Application
  • Operating Temp: -10 to +50 °C
  • Accuracy: +/- 0.3% of applied load
  • Protection: IP65
  • Compact size
  • Lightweight
  • Stainless steel construction



Capacity (t) Resolution (t) Weight (kg)
5 0.0001 3.2
10 0.002 3.2
25 0.005 3.2
50 0.01 6.2
100 0.05 15.5
150 0.05 15.5
300 0.1 65
500 0.2 65



Capacity (t) A B D E F G
5 76 83 32 10 M12x1.75 152
10 76 83 32 10 M12x1.75 152
25 76 83 32 10 M12x1.75 152
50 102 127 59 13 M20x2.5 152
100 152 184 80 26 M20x2.5 432
150 152 184 80 26 M20x2.5 432
300 185 300 155 27.5 M20x2.5 432
500 185 300 155 27.5 M20x2.5 432
