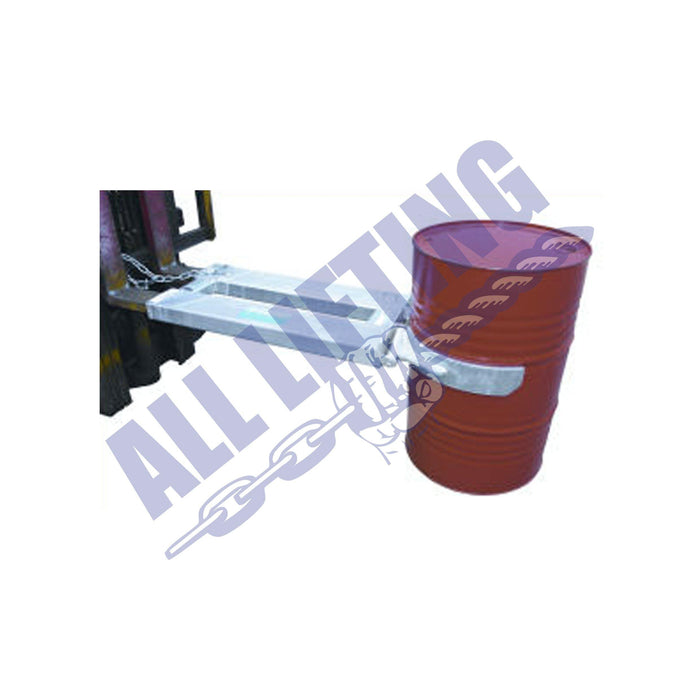

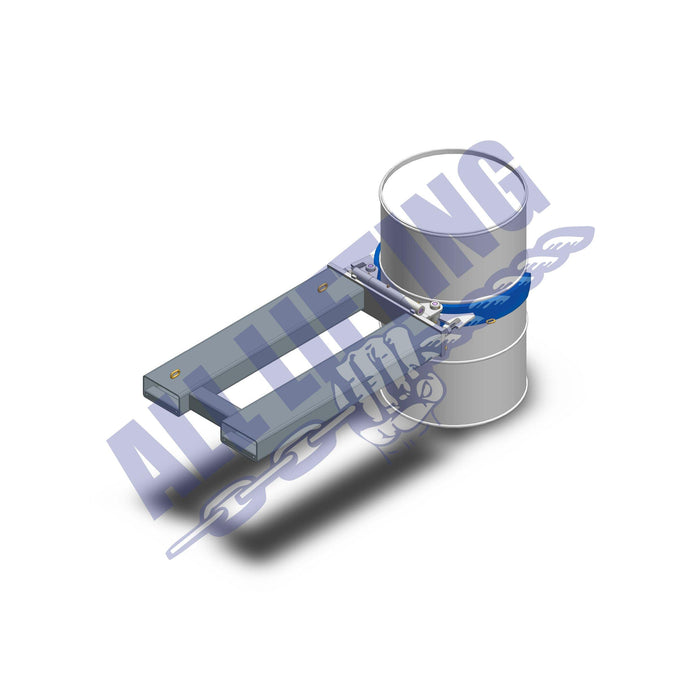

DLM Single Drum Lifter

by All Lifting
Price on Application
  • Designed for standard 205 litre drums
  • Clamping action enables safe and precise placement of drums
  • The operator does not have to leave the driver's seat
  • The drum is gripped by pushing arms against the drum and lock under the rolling hoop when raised
  • The heavier the load the tighter the grip becomes
  • To release drum lower the drum onto ground level and reverse the forklift
  • Zinc plated finish



Part # WLL (kg) Drum Size (L) Unit Weight (kg) Load Centre (mm) Pocket Size (mm) Pocket Centres (mm) HCG (mm) VCG (mm)
189DLM50 500 205 65 1340 185X65 300 760 -50
