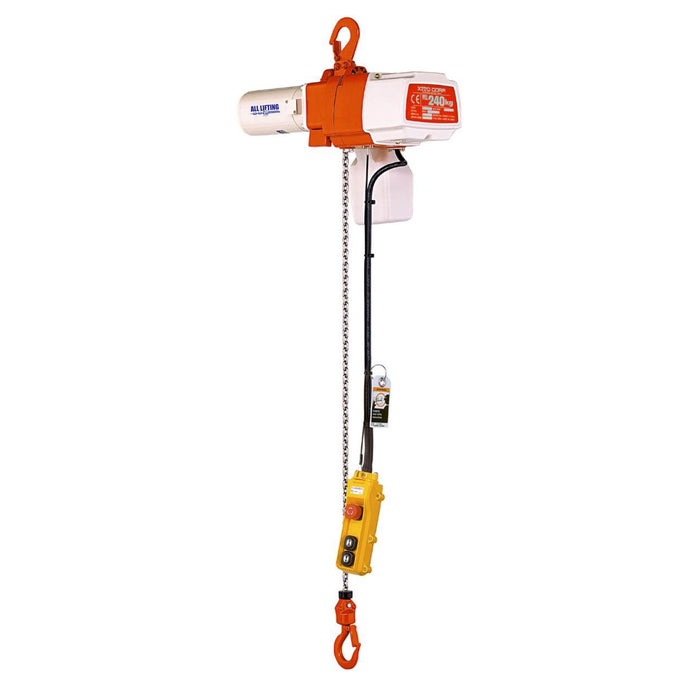

ED Electric Chain Hoist with Pendant Control
|
Part # |
Model |
Capacity (kg) |
Type |
Standard Lift (m) |
Lift Speed (m/min.) |
Headroom (mm) |
Load Chain Dia (mm) x Fall |
Weight (kg) |
Load Chain Dia x Pitch (mm) |
|
EHP45100S |
EDL10S |
100 |
Single Speed – Pendant |
3 |
13 |
315 |
4.0 x 1 |
12 |
4.0x12.0 |
|
EHP45160S |
EDL16S |
160 |
Single Speed – Pendant |
3 |
20 |
330 |
4.0 X 1 |
16 |
4.0x12.0 |
|
EHP45180S |
EDL18S |
180 |
Single Speed – Pendant |
3 |
8 |
315 |
4.0 x 1 |
12 |
4.0x12.0 |
|
EHP45240S |
EDL24S |
240 |
Single Speed – Pendant |
3 |
13.5 |
330 |
4.0 x 1 |
16 |
4.0x12.0 |
|
EHP45480S |
EDL48S |
480 |
Single Speed – Pendant |
3 |
6.7 |
520 |
4.0 x 2 |
21.5 |
4.0x12.0 |
|
EHP45100D |
EDL10ST |
100 |
Dual Speed – Pendant |
3 |
13.0/3.0 |
315 |
4.0 x 1 |
12.5 |
4.0x12.0 |
|
EHP45160D |
EDL16ST |
160 |
Dual Speed – Pendant |
3 |
20.0/5.0 |
330 |
4.0 x 1 |
16.5 |
4.0x12.0 |
|
EHP45180D |
EDL18ST |
180 |
Dual Speed – Pendant |
3 |
8.0/3.0 |
315 |
4.0 x 1 |
12.5 |
4.0x12.0 |
|
EHP45240D |
EDL24ST |
240 |
Dual Speed – Pendant |
3 |
13.5/3.0 |
330 |
4.1 x 1 |
16.5 |
4.0x12.0 |
|
Part # |
Model |
a (mm) |
d (mm) |
e (mm) |
f (mm) |
h (mm) |
i (mm) |
g (mm) |
j (mm) |
k (mm) |
m (mm) |
n (mm) |
|
|
EHP45100S |
EDL10S |
371 |
187 |
184 |
205 |
125 |
80 |
25 |
25 |
340 |
92 |
73 |
|
|
EHP45160S |
EDL16S |
428 |
205 |
223 |
219 |
135 |
84 |
25 |
25 |
362 |
92 |
73 |
|
|
EHP45180S |
EDL18S |
371 |
187 |
184 |
205 |
125 |
80 |
25 |
25 |
340 |
92 |
73 |
|
|
EHP45240S |
EDL24S |
248 |
205 |
223 |
219 |
135 |
84 |
25 |
25 |
362 |
92 |
73 |
|
|
EHP45100D |
EDL10ST |
371 |
187 |
184 |
205 |
125 |
80 |
25 |
25 |
340 |
92 |
73 |
|
|
EHP45160D |
EDL16ST |
428 |
205 |
223 |
219 |
135 |
84 |
25 |
25 |
362 |
92 |
73 |
|
|
EHP45180D |
EDL18ST |
371 |
187 |
184 |
205 |
125 |
80 |
25 |
25 |
340 |
92 |
73 |
|
|
EHP45240D |
EDL24ST |
428 |
205 |
223 |
219 |
135 |
84 |
25 |
25 |
362 |
92 |
73 |
|
