EHW Wire Rope Pneumatic Air Hoists

by All Lifting
Price on Application
  • High strength wire rope lifts
  • 120kg – 250kg capacity
  • Pendant or hook control with cone brake system
  • Continuous duty rating
  • Compact and lightweight aluminium body
  • Free adjustment disc brakes
  • Small and lightweight gears can take a large speed reduction ratio
  • Control valve features spool valves of spring return in 2 positions and 3 ports
  • Reverse winding protection auto stop
  • Meets Australian Standard AS1418.2



Industry applications: mining, construction, engineering

Cone brake system has a control valve integrated with the proper speed reduction mechanism at air motor, providing excellent control.

Capacity

Model

Standard Lift (m)

Lift Speed
(m/min)

Headroom  Hook
Suspended (mm)

Control Type

Weight (kg)

120kg

EHW-120

1.9

16.0

680

On Hook

9.5

120kg

EHW-120R

1.9

16.0

630

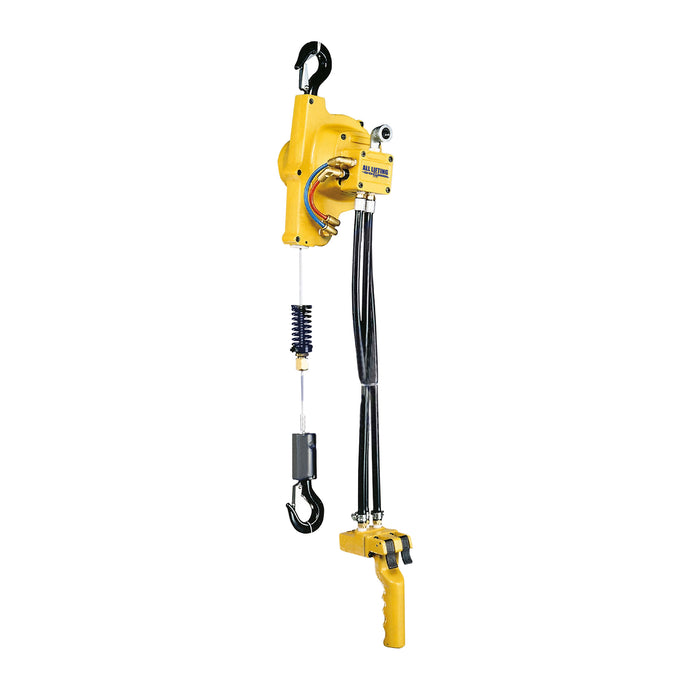

Pendant

9.7

250kg

AH-250R

2.5

11.0

745

Pendant

18.2
