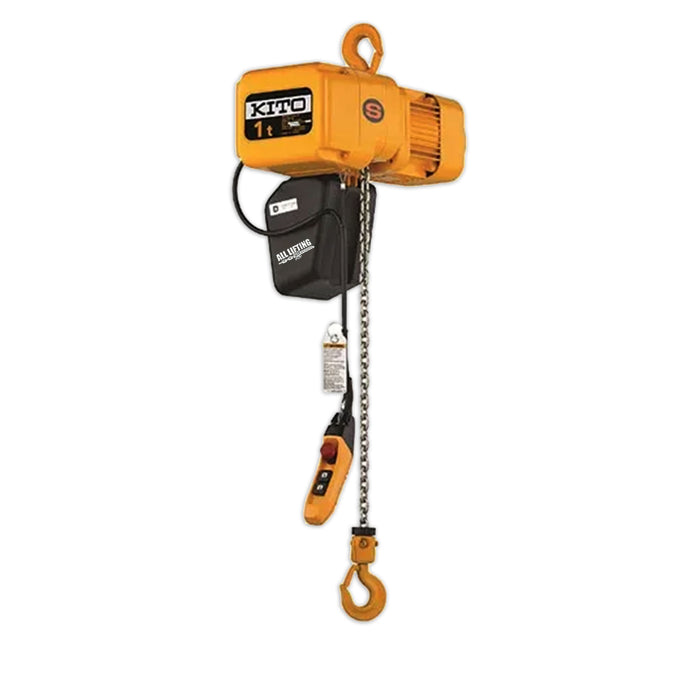

ER2 Electric 3 Phase Chain Hoist Dual Speed 250kg - 5 tonne

by All Lifting
Price on Application

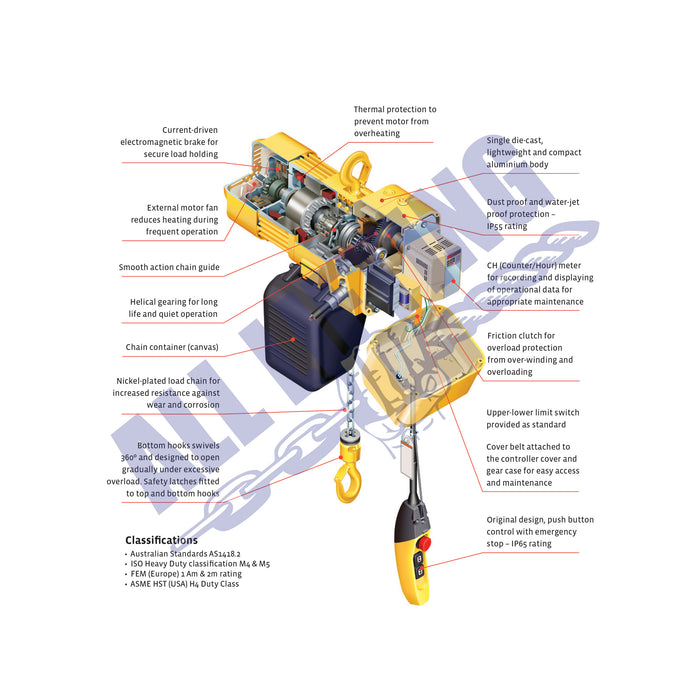

  • Five metres of power supply cable as standard
  • Optional height of lift, pendant cable and power supply cable other than standard available on request
  • Steel chain containers are available as an option if your lift is more than the capacity of the standard container volume
  • Patented friction clutch allows for reliable overload protection and safety
  • Thermal protection on hoist motor reduces the risk of motor burnout
  • Upper/lower limit switch
  • Adjustment free brakes = less maintenance
  • Nickel plated load chain = added resistance to rust and abrasion
  • Fan cooled motor = reduces overheating
  • Condition monitoring with counter/ hour meter - built-in
  • Come standard with either 3 or 6 mtr height of lift



Capacity

Model

Lifting Speed m/min

Motor Rating Output KW

Motor Rating (%ED)

Load Chain Dia (mm) x fall

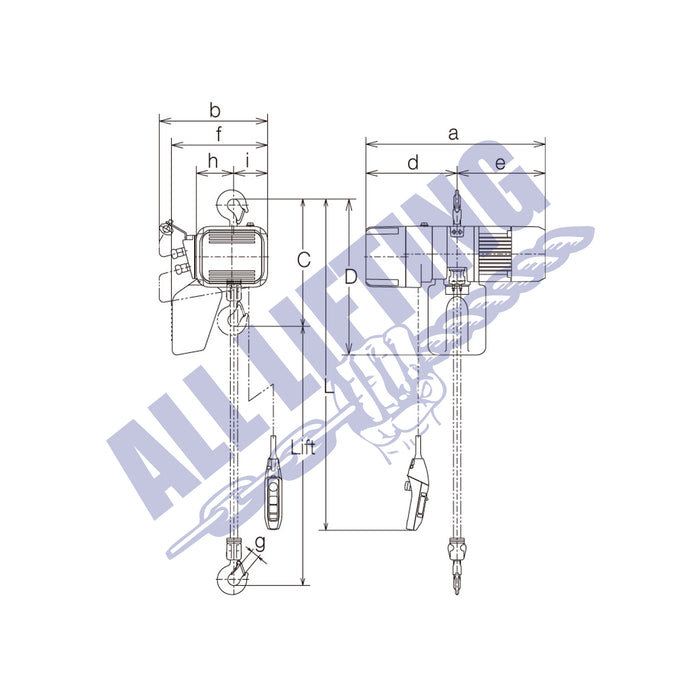

Hook Suspended Headroom (mm)

Hook Suspended Weight (kg)

250kg

ER2-003IS

10.8 – 1.8

0.56

40/20

4.3 X 1

350

27

500kg

ER2-005IL

4.5 – 0.8

0.56

40/20

6.0 X 1

370

32

500kg

ER2-0051S

8.5 – 1.4

0.9

40/20

6.0 X 1

370

36

1 tonne

ER2-010IL

4.2 – 0.7

0.9

40/20

7.7 X 1

430

45

1 tonne

ER2-010IS

8.2 – 1.4

1.8

40/20

7.7 X 1

430

52

1.5 tonne

ER2-015IS

5.3 – 0.9

1.8

40/20

10.2 X 1

510

72

2 tonne

ER2-020IL

4.3 – 0.7

1.8

40/20

10.2 X 1

575

73

2 tonne

ER2-020IS

8.2 – 1.4

3.5

40/20

10.2 X 1

590

89

2.5 tonne

ER2-025IS

6.6 – 1.1

3.5

40/20

11.2 X 1

625

100

3 tonne

ER2-030IS

5.2 – 0.9

3.5

40/20

10.2 X 2

785

105

5 tonne

ER2-050IS

3.3 – 0.6

3.5

40/20

11.2 X 2

850

128
