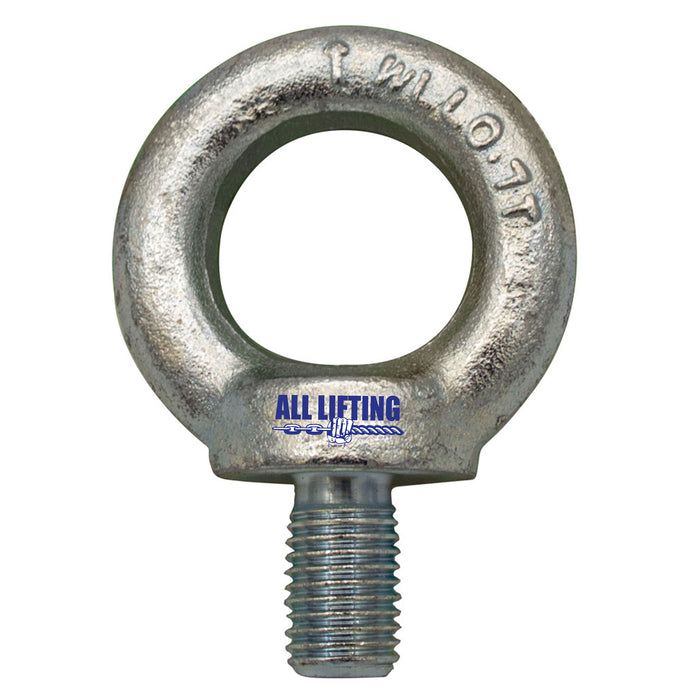

Eye Bolt DIN580
by All Lifting
$1.93
- Generally used as a removable lifting point where a rated female thread or nut can be utilized
- Can be used as a termination for chain, wire rope and other assemblies where required
- Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye (only available in metric thread sizes)

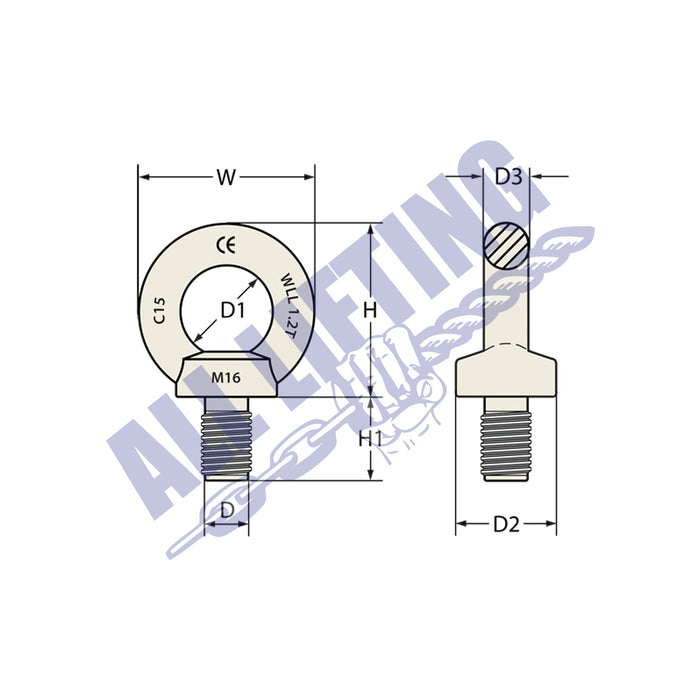

- Conforms to DIN580 marked with working load limit, nominal size, quality grade, batch numbered and supplier identification
|
Size |
W.L.L (Tonne) |
D (mm) |
D1 (mm) |
D2 (mm) |
D3 (mm) |
H (mm) |
H1 (mm) |
W (mm) |
|
M6 |
0.07 |
6 |
20 |
20 |
8 |
36 |
13 |
36 |
|
M8 |
0.14 |
8 |
20 |
20 |
8 |
36 |
13 |
36 |
|
M10 |
0.23 |
10 |
25 |
25 |
10 |
45 |
17 |
45 |
|
M12 |
0.34 |
12 |
30 |
30 |
12 |
53 |
20 |
54 |
|
M16 |
0.70 |
16 |
35 |
35 |
14 |
62 |
27 |
63 |
|
M20 |
1.20 |
20 |
40 |
40 |
16 |
71 |
30 |
72 |
|
M22 |
1.50 |
22 |
45 |
45 |
18 |
80.5 |
35 |
81 |
|
M24 |
1.80 |
24 |
50 |
50 |
20 |
90 |
36 |
90 |
|
M27 |
2.50 |
27 |
50 |
50 |
20 |
97 |
36 |
90 |
|
M30 |
3.60 |
30 |
65 |
65 |
24 |
109 |
45 |
108 |
|
M36 |
5.10 |
36 |
75 |
75 |
28 |
128 |
54 |
126 |
|
M42 |
7.00 |
42 |
85 |
85 |
32 |
147 |
63 |
144 |
|
M48 |
8.60 |
48 |
100 |
100 |
38 |
168 |
68 |
168 |
|
M56 |
11.5 |
56 |
100 |
110 |
42 |
187 |
78 |
184 |
