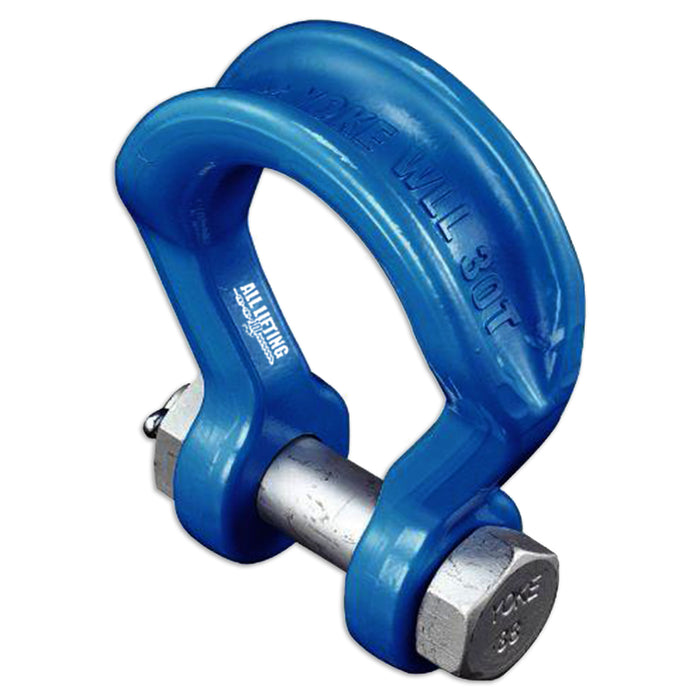

Forged Alloy Wide Body Shackle

by All Lifting
Price on Application
Enquire
  • Shackles are forged from alloy steel with alloy pin
  • Size and working load limit permanently shown on each shackle
  • 100% magnaflux crack detection during manufacturing
  • Applications: Marine, agricultural and general industrial

Size (mm)

W.L.L

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

G (mm)

H (mm)

K (mm)

R (mm)

W (mm)

N.W (K.g)

19

7

91

41

18

22

32

46

150

104

32

33

1.7

26

12.5

118

54

23

29

41

61

194

140

35

44

3.8

32

18

148

64

30

36

51

68

238

172

38

54

6.7

38

30

176

80

35

45

64

89

289

216

45

60

12.5
