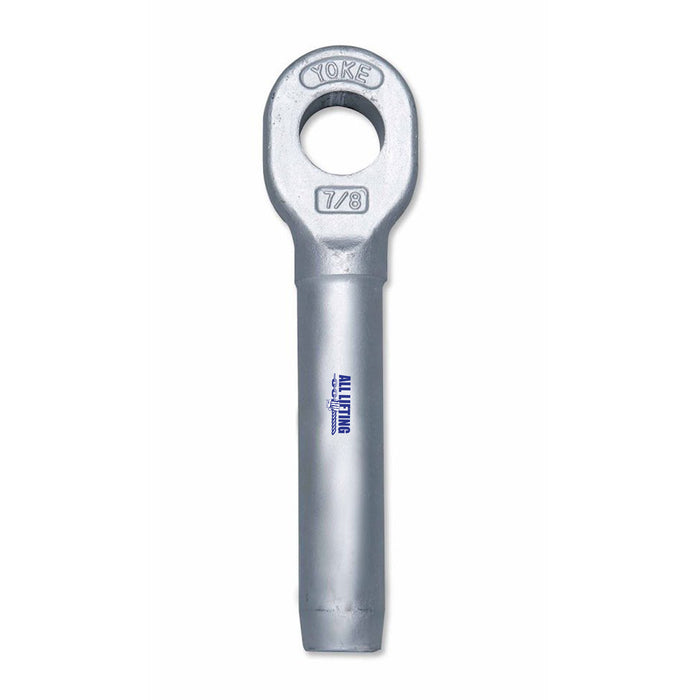

Forged Closed Swage Wire Rope Socket
by All Lifting
$69.72
- Forged from special, bar quality steel with hardness controlled, spheroidize annealing
- When properly applied, these fittings have an efficiency rating of 100% based on the catalogue strength of wire rope
- Recommended for use with 6 x 19, 6 x 37, IWRC wire rope and galvanised bridge rope
- Self-colour finish
**NOT recommended for use on fibre core or langs lay rope**
**Please note this is a non-stocked item, if required urgently please contact us to check availability**
|
Rope Size (mm) |
L (mm) |
D (mm) |
B (mm) |
D1 (mm) |
d (mm) |
L1 (mm) |
H (mm) |
K (mm) |
|
|
6-7 |
110 |
13 |
35 |
19 |
7 |
54 |
13 |
89 |
|
|
8 |
140 |
20 |
41 |
22 |
9 |
80 |
17 |
114 |
|
|
9-10 |
140 |
20 |
41 |
22 |
11 |
80 |
17 |
114 |
|
|
11-12 |
176 |
25 |
51 |
27 |
12 |
108 |
22 |
146 |
|
|
13 |
176 |
25 |
51 |
27 |
14 |
108 |
22 |
146 |
|
|
14-15 |
221 |
32 |
61 |
32 |
16 |
135 |
29 |
185 |
|
|
16 |
221 |
32 |
61 |
32 |
17 |
135 |
29 |
185 |
|
|
18-20 |
259 |
39 |
73 |
36 |
21 |
162 |
33 |
217 |
|
|
22-23 |
304 |
43 |
79 |
43 |
24 |
189 |
38 |
258 |
|
|
24-25 |
342 |
50 |
92 |
52 |
27 |
216 |
45 |
293 |
|
|
28 |
382 |
57 |
102 |
59 |
30 |
243 |
51 |
323 |
|
|
32 |
431 |
64 |
114 |
65 |
34 |
270 |
57 |
364 |
|
|
35-36 |
475 |
71 |
127 |
65 |
37 |
297 |
57 |
402 |
|
|
38 |
511 |
78 |
140 |
71 |
41 |
323 |
64 |
432 |
|
|
44-45 |
598 |
86 |
159 |
90 |
47.2 |
378 |
76 |
508 |
|
|
48-51 |
702 |
100 |
184 |
97 |
54.1 |
432 |
83 |
584 |
|
