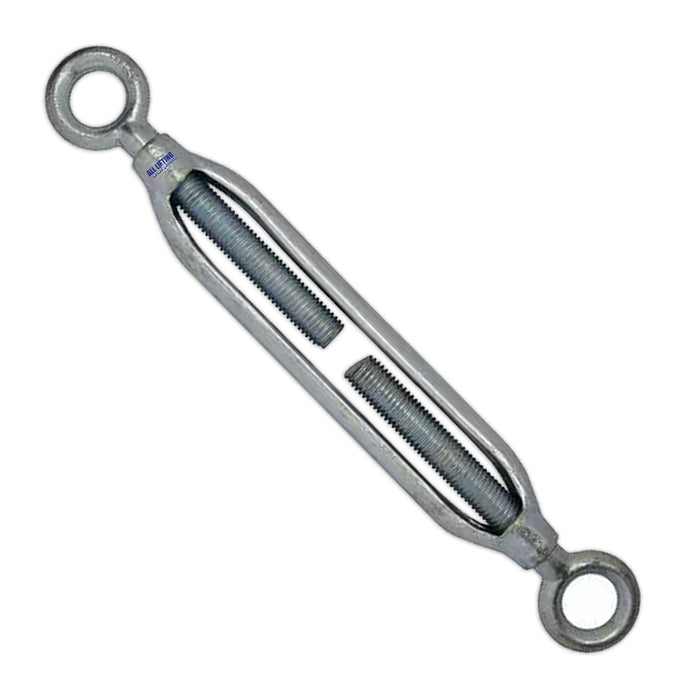

Commercial Turnbuckle Eye and Eye
by All Lifting
$4.71
- Often used for straight or inline tension applications
- Commonly used in conjunction with wire rope and chain assemblies
- Manufactured from forged steel
- Hot dipped galvanised finish
- Other sizes available at request
**NOT for lifting applications**
|

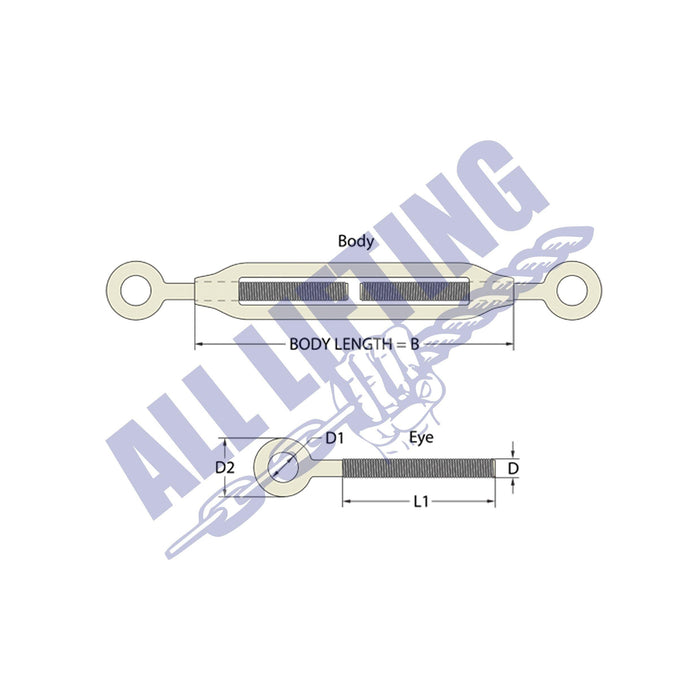

CODE |
SIZE mm |
Open |
Closed |
B (mm) |
D1 (mm) |
D2 (mm) |
|
14TBEE06 |
6 |
200 |
132 |
98 |
10 |
19.5 |
|
14TBEE08 |
8 |
250 |
166 |
123 |
11 |
22 |
|
14TBEE10 |
10 |
295 |
188 |
144 |
12 |
25 |
|
14TBEE12 |
12 |
420 |
255 |
297 |
17 |
33.5 |
|
14TBEE16 |
16 |
525 |
340 |
250 |
24 |
45.5 |
|
14TBEE20 |
20 |
605 |
395 |
285 |
28 |
52 |
|
14TBEE22 |
22 |
- |
- |
330 |
34 |
- |
|
14TBEE25 |
25 |
720 |
490 |
345 |
32.5 |
67 |
