General Superflex Steel Cables

by All Lifting
Price on Application

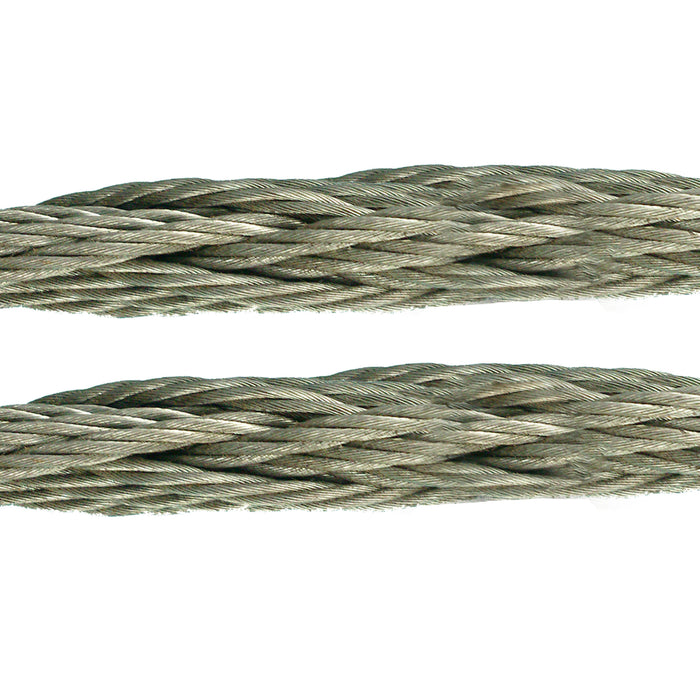

  • Plaited steel cable, not laid or twisted like wire rope
  • Tough, flexible and set-resistant cable composed of many wires
  • 912 individual wires in a cross section
  • The helical pitch is half that of normal wire rope
  •  Used to make slings for general lifting operations where flexibility and ease of handling are important
  • Please send us an enquiry for more information on this product



Cable Size Minimum Breaking Force (kN) Mass (kg/100m) Minimum Standard Reel (m) Nominal Dia. (Ferrule Size Din)
Two-0 30 20 100 8
Two-5 50 31 100 10
Three-0 75 47 100 13
Three-5 95 60 100 14
Four-0 125 79 100 16
Four-5 157 103 100 18
Five-0 210 125 100 22
Five-5 270 168 100 22
Six-5 340 212 100 26
Eight-0 530 337 50 34
Ten-0 780 499 50 42
