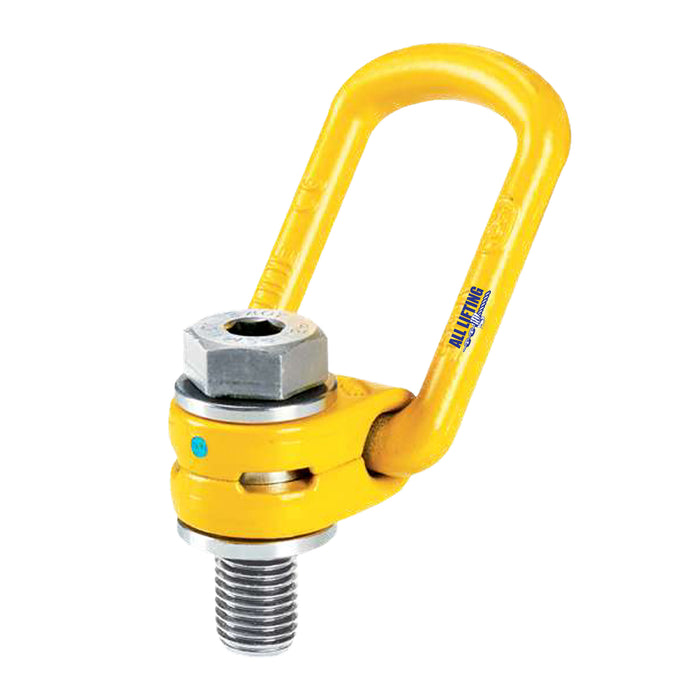

Grade 80 Swivel Lifting Point
by All Lifting
$99.04
- 360° swivel with 180° pivot function
- Bolts are metric thread grade 10.9 alloy
- 100% Magnaflux crack detection, 20,000 cycle fatigue tested
- Hoist ring and bail are manufactured from quenched and tempered, forged alloy steel
- Applications: Machinery and various lifting and lashing applications
- Standard and long bolt available
|

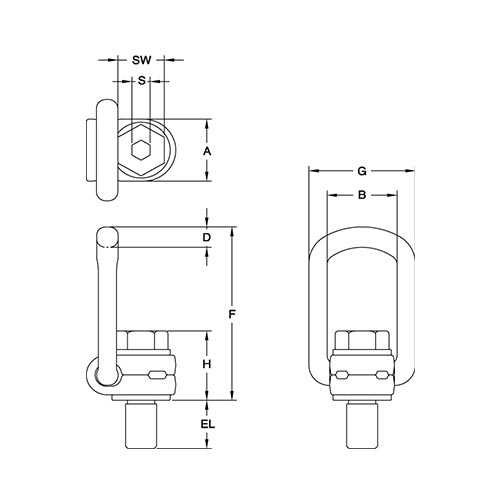

Description |
B (mm) |
EL (mm) |
L1 (mm) |
A (mm) |
G (mm) |
D (mm) |
F (mm) |
H (mm) |
S (mm) |
Mass (kg) |
|
M8 0.3t |
35 |
11 |
45 |
30 |
55 |
10 |
85 |
35 |
6 |
0.2 |
|
M10 0.63t |
35 |
16 |
50 |
30 |
55 |
10 |
85 |
36 |
8 |
0.3 |
|
M12 1.0t |
37 |
18 |
60 |
33 |
57 |
13.5 |
98 |
44 |
8 |
0.5 |
|
M16 1.5t |
37 |
24 |
60 |
33 |
57 |
13.5 |
98 |
46 |
10 |
0.5 |
|
M20 2.5t |
54 |
30 |
80 |
50 |
82 |
16.5 |
140 |
57 |
12 |
1.3 |
|
M24 4.0t |
54 |
36 |
85 |
50 |
82 |
16.5 |
140 |
59 |
14 |
1.4 |
|
M27 4.0t |
65 |
38 |
110 |
60 |
99 |
22.5 |
170 |
79 |
17 |
2.8 |
|
M30 5.0t |
65 |
48 |
115 |
60 |
99 |
22.5 |
170 |
81 |
17 |
3.1 |
|
M36 7.0t |
65 |
54 |
125 |
60 |
99 |
22.5 |
178 |
88 |
22 |
3.3 |
|
M36 8.0t |
85 |
62 |
140 |
77 |
124 |
26.5 |
225 |
101 |
22 |
5.8 |
|
M42 10.0t |
85 |
72 |
150 |
77 |
124 |
26.5 |
225 |
104 |
24 |
6.3 |
|
M42 15.0t |
104 |
63 |
150 |
95 |
158 |
36 |
261 |
117 |
24 |
10.9 |
|
M48 20.0t |
104 |
72 |
160 |
95 |
158 |
36 |
261 |
121 |
27 |
11.6 |
