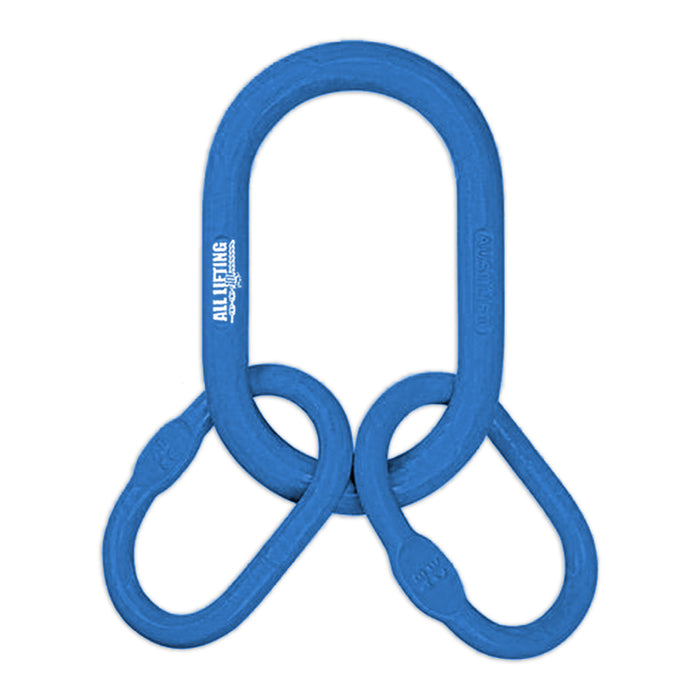

Grade 100 Oblong Link Multi Series
by All Lifting
$100.85
- For use in 2, 3 or 4 leg assemblies
- Comprises of a master link two intermediate links, each with the same lifting capacity
- 25% higher lifting capacity then grade 80
- Sizes available 6mm - 32mm
- Designed for single and 2 leg chain and wire rope sling applications
- Conforms to AS 2321
**Please note colour and dimensions will vary depending on supplier**
|
Code |
Chain Size |
W.L.L @ 60 Degrees(Tonne) |
H (mm) |
J (mm) |
K (mm) |
T (mm) |
U (mm) |
V (mm) |
|
02MLM08 |
8 |
4.3 |
140 |
80 |
20 |
70 |
35 |
16 |
|
02MLM10 |
10 |
6.9 |
180 |
100 |
26 |
90 |
45 |
20 |
|
02MLM13 |
13 |
11.3 |
230 |
125 |
32 |
120 |
60 |
26 |
|
02MLM16 |
16 |
17.3 |
290 |
160 |
40 |
130 |
65 |
28 |
|
02MLM20 |
20 |
27.7 |
340 |
190 |
50 |
160 |
80 |
36 |
|
02MLM22 |
22 |
32.9 |
340 |
190 |
50 |
180 |
90 |
40 |
