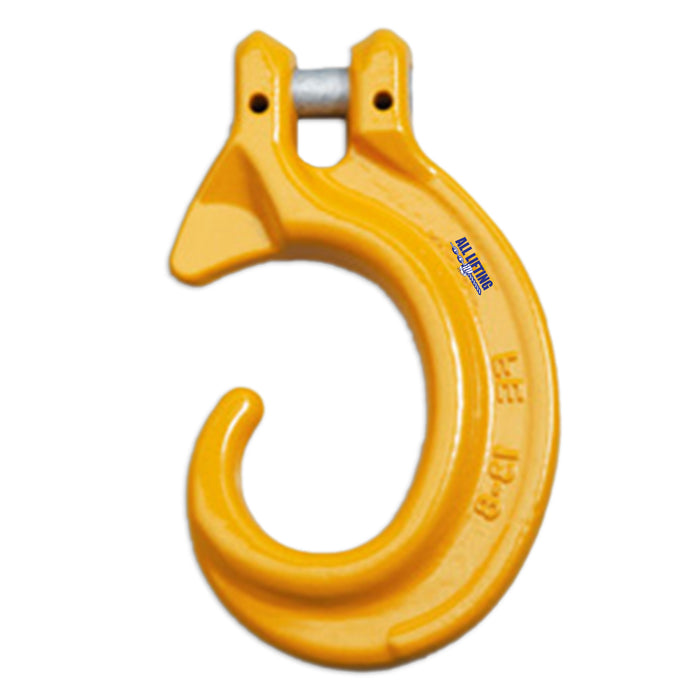

Grade 80 C Hook Clevis
by All Lifting
$43.32
- A general purpose hook that can be mechanically coupled for easy assembly and use
- Applications: Logging
- Hooks without a latch are generally used for specific applications therefore where there is a risk of the hooks becoming detached during use, a risk assessment shall be conducted in accordance with section 11 of AS 3776
- Non-stock item
| Part # | Chain Size (mm) | WLL (t) | A (mm) | K (mm) | P (mm) | T (mm) | H (mm) | Mass (kg) | ||
| 01HCCC08 | 8.0 | 2 | 9 | 80 | 19 | 18 | 22 | 0.5 | ||
| 01HCCC10 | 10 | 3.2 | 11 | 105 | 26 | 24 | 26 | 0.9 | ||
| 01HCCC13 | 13 | 5.3 | 14 | 138 | 34 | 32 | 34 | 2.1 | ||
| 01HCCC16 | 16 | 8 | 18 | 170 | 38 | 37 | 45 | 3.6 |
