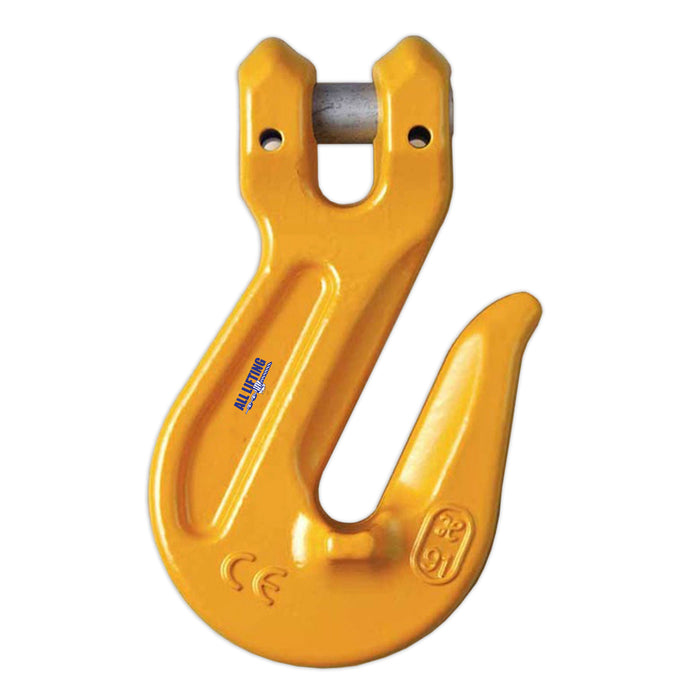

Grade 80 Grab/Shortner Hook With Wings Clevis
by All Lifting
$16.48
- No reduction in WLL when used as a shortening hook on cradle type with supporting wings
- Applications: Shortening and reeving of chain slings
- Conforms to AS 3776
**Please note colour and dimensions may vary slightly depending on supplier**
|
Code |
Chain Size (mm) |
W.L.L (Tonne) |
A (mm) |
P (mm) |
K (mm) |
H (mm) |
|
01HCG06 |
6 |
1.1 |
7 |
7 |
41 |
16 |
|
01HCG08 |
8 |
2 |
9 |
10 |
55 |
25 |
|
01HCG10 |
10 |
3.2 |
12 |
13 |
77 |
35 |
|
01HCG13 |
13 |
5.3 |
15 |
16 |
97 |
42 |
|
01HCG16 |
16 |
8 |
17 |
20 |
102 |
45 |
|
01HCG20 |
20 |
12.5 |
23 |
23 |
124 |
54 |
