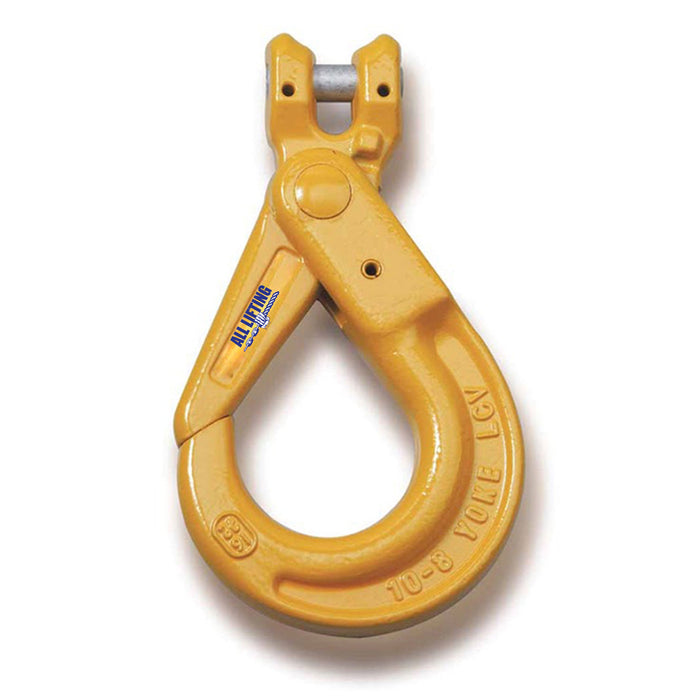

Grade 80 Self Locking Hook Clevis

by All Lifting
$48.82
Shipping & Handling
  • Easily and safely closed with one hand
  • Locks itself when the load is engaged
  • Will not disengage even if the load is temporarily set down
  • Can be mechanically connected to Grade 8- Chain for easy assembly and use
  • Applications: Chain slings
  • Conforms to AS 3776

**Please note colour and size may vary slightly depending on supplier**



Code

Chain Size (mm)

W.L.L (Tonne)

A (mm)

K (mm)

P (mm)

T (mm)

H (mm)

01HCSL06

6

1.1

6

100

29

15

19

01HCSL08

8

2

9

119

34

20

24

01HCSL10

10

3.2

11

143

44

26

30

01HCSL13

13

5.3

14

179

52

30

39

01HCSL16

16

8

18

212

60

36

49

01HCSL20

20

12.5

21

243

90

48

62

01HCSL22

22

15

24

273

80

49

63
