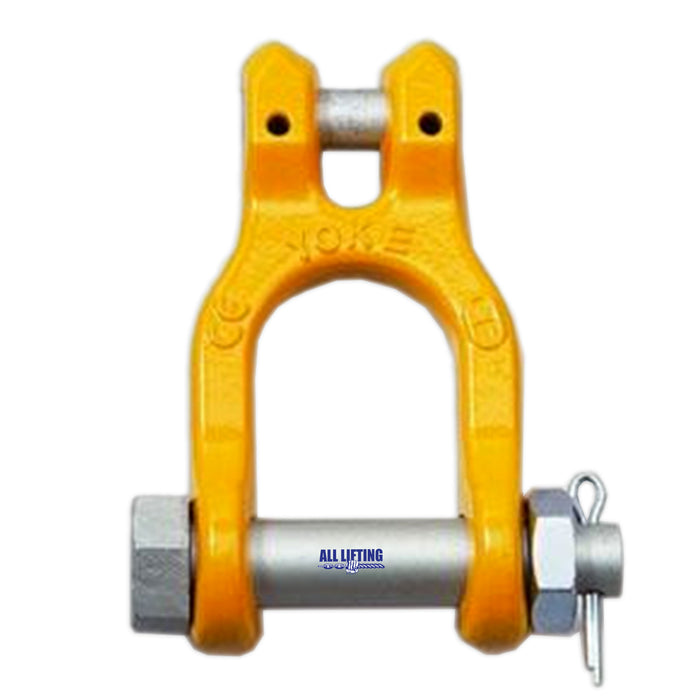

Grade 80 Clevis Shackle
- Designed specifically for use as a terminal end fitting with a clevis connection directly to chain
- Confroms to AS 3776
Part # | Chain Size (mm) | WLL (t) | A (mm) | K (mm) | L (mm) | W (mm) | M (mm) | C (mm) | Mass (kg) | ||
01SC08 | 8.0 | 2 | 9 | 59 | 35 | 33 | 16 | 79 | 0.4 | ||
01SC10 | 10 | 3.2 | 11 | 78 | 48 | 37 | 20 | 93 | 0.8 | ||
01SC13 | 13 | 5.3 | 14 | 98 | 64 | 49 | 22 | 118 | 1.4 | ||
01SC16 | 16 | 8 | 18 | 112 | 69 | 60 | 28 | 141 | 2.5 |
