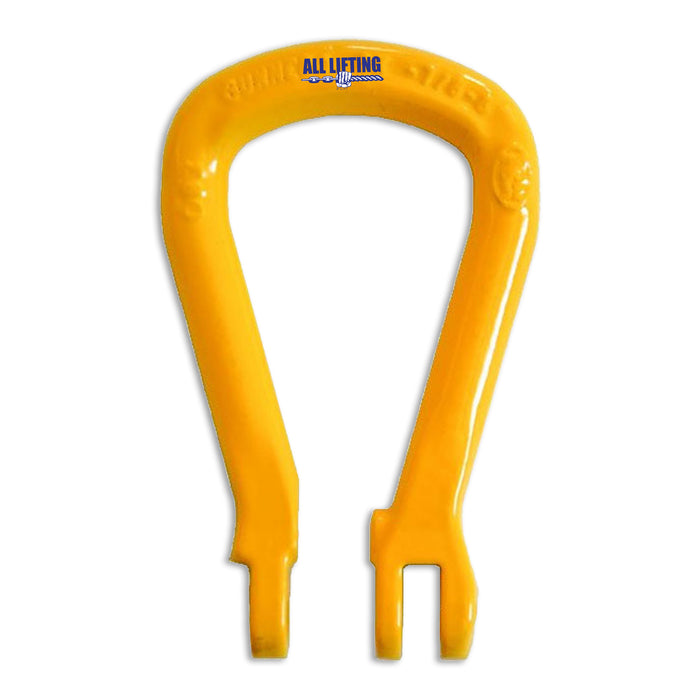

Grade 80 Coupling Master Link
- Applications: Chain, wire rope and synthetic slings
- Conforms to AS 3776
- Non-stock item
**Please note pin & sleeve sold separately**
Part # | Chain Size (mm) | WLL (t) | K (mm) | W (mm) | T (mm) | H (mm) | A (mm) | Mass (kg) | ||
01CML08 | 8.0 | 2.0 | 100 | 50 | 15 | 15 | 15 | 0.3 | ||
01CML10 | 10 | 3.2 | 127 | 65 | 19 | 19 | 19 | 0.7 | ||
01CML13 | 13 | 5.3 | 145 | 72 | 23 | 22 | 25 | 1 | ||
01CML16 | 16 | 8.0 | 174 | 80 | 25 | 26 | 30 | 1.6 | ||
01CML20 | 20 | 12.5 | 202 | 104 | 31 | 36 | 36 | 3 |
