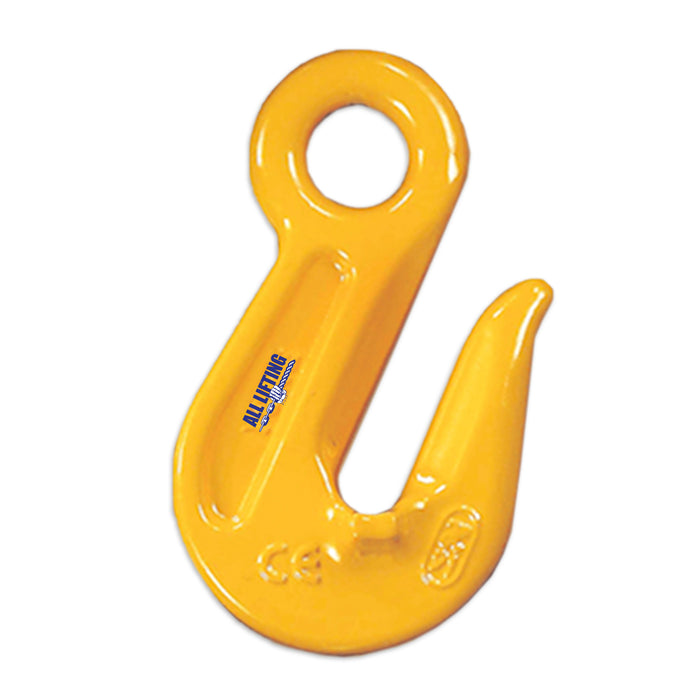

Grade 80 Grab/Shortner Hook With Wing Eye
by All Lifting
$12.17
- No reduction in WLL when used as a shortening hook on cradle type with supporting wings
- Applications: Shortening and reeving of chain slings
- Conforms to AS 3776
**Please note colour and dimensions may vary slightly depending on supplier**
|
Code |
Chain Size (mm) |
W.L.L (Tonne) |
P (mm) |
A (mm) |
K (mm) |
|
01HEG06 |
6 |
1.1 |
8 |
13 |
51 |
|
01HEG08 |
8 |
2 |
10 |
15 |
60 |
|
01HEG10 |
10 |
3.2 |
13 |
20 |
84 |
|
01HEG13 |
13 |
5.3 |
16 |
25 |
102 |
|
01HEG16 |
16 |
8 |
20 |
30 |
114 |
|
01HEG20 |
20 |
12.5 |
23 |
36 |
132 |
|
01HEG22 |
22 |
15 |
26 |
38 |
165 |
|
01HEG26 |
26 |
21.2 |
29 |
41 |
187 |
|
01HEG32 |
32 |
31.5 |
37 |
57 |
230 |
