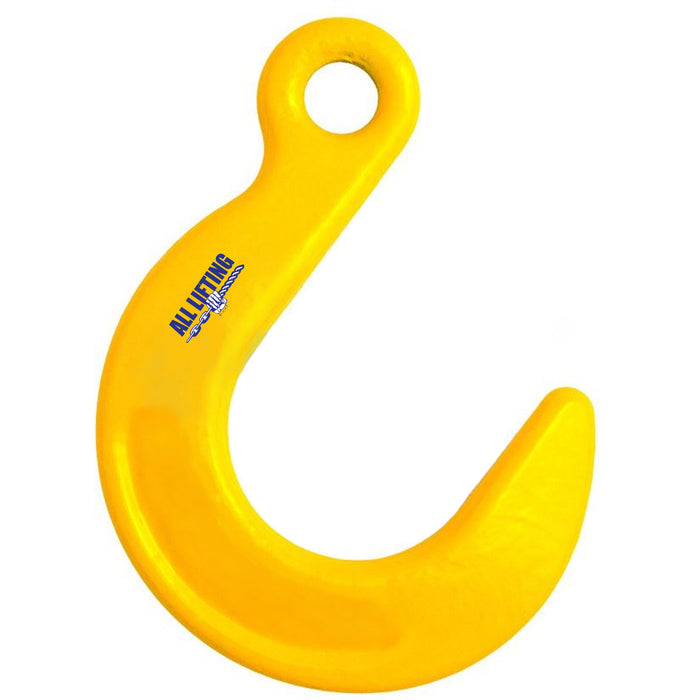

Grade 80 Foundry Hook Eye

by All Lifting
$32.41
Shipping & Handling
  • For use where large throat openings are necessary
  • Hooks without a latch are generally used for specific applications therefore where there is a risk of the hooks becoming detached during use, a risk assessment shall be conducted in accordance with section 11 of AS 3776
  • Applications: Appropriate for foundry applications
  • Conform to AS 3776

**Please note colour and dimensions may vary slightly depending on supplier**

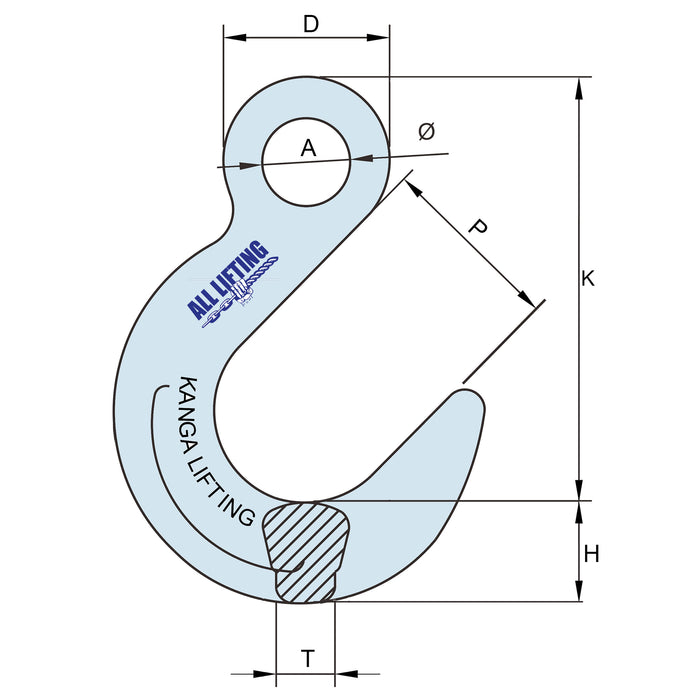

Code

Chain Size (mm)

W.L.L (Tonne)

K (mm)

P (mm)

A (mm)

D (mm)

T (mm)

H (mm)

01HEF08

8

2

122

61

24

12

20

30

01HEF10

10

3.2

150

74

31

15

24

34

01HEF13

13

5.3

180

88

40

20

34

42

01HEF16

16

8

215

98

49

24

43

50

01HEF20

20

12.5

248

112

60

28

46

57
