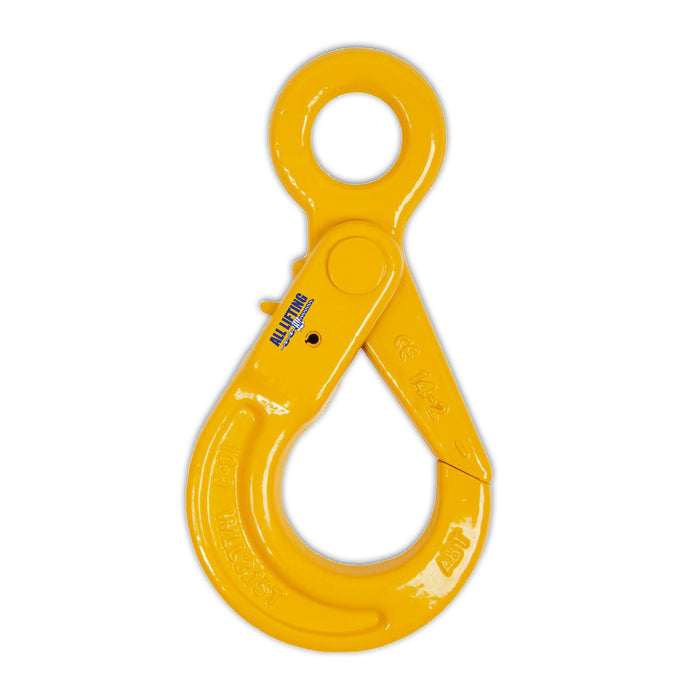

Grade 80 Self Locking Hook Eye

by All Lifting
$41.98
Shipping & Handling
  • Easily and safely closed with one hand
  • Locks itself when the load is engaged
  • Will not disengage even if the load is temporarily set down
  • Can be mechanically connected to Grade 8- Chain for easy assembly and use
  • Applications: Chain slings
  • Conforms to AS 3776

**Please note colour and size may vary slightly depending on supplier**

Code

Chain Size (mm)

W.L.L (Tonne)

K (mm)

P (mm)

A (mm)

D (mm)

T (mm)

H (mm)

01HESL06

6

1.1

110

29

21

10

15

19

01HESL08

8

2

136

34

25

11

20

24

01HESL10

10

3.2

167

44

32

13

26

30

01HESL13

13

5.6

207

52

40

16

30

39

01HESL16

16

8

252

60

52

21

36

49

01HESL20

20

12.5

282

90

64

23

48

62

01HESL22

22

15

319

80

70

24

49

63

01HESL26

26

21.2

343

99

80

25

56

69
