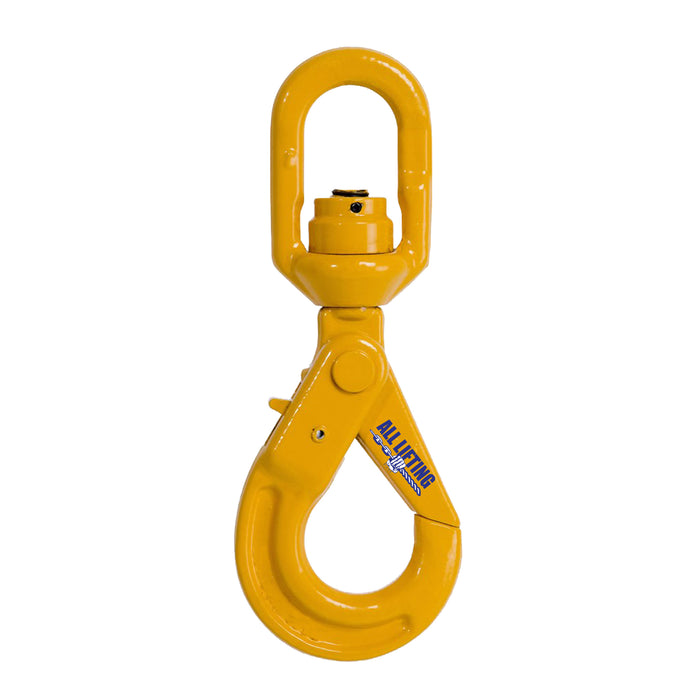

Grade 80 Swivel Self Locking Hook with Ball Bearing Eye
by All Lifting
$123.27
- Designed with ball bearing allowing the hook to swivel freely under load
- Applications: Chain Slings
- Conforms to AS 3776
**Please note colour and dimensions may vary slightly depending on supplier**
|

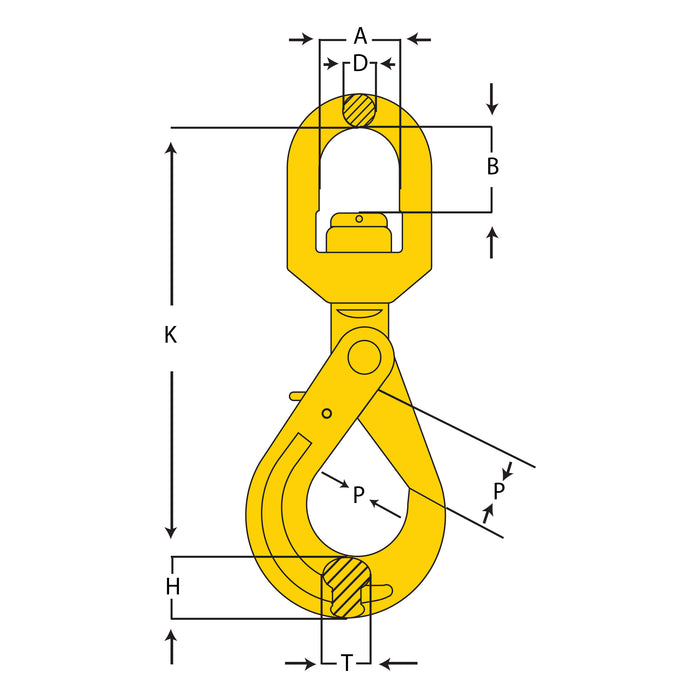

Code |
Chain size (mm) |
W.L.L (Tonne) |
K (mm) |
P (mm) |
B (mm) |
A (mm) |
D (mm) |
T (mm) |
H (mm) |
|
01HSSL06B |
6 |
1.1 |
149 |
29 |
22 |
31 |
12 |
15 |
19 |
|
01HSSL08B |
8 |
2 |
186 |
34 |
29 |
36 |
14 |
20 |
24 |
|
01HSSL10B |
10 |
3.2 |
220 |
44 |
34 |
40 |
16 |
26 |
30 |
|
01HSSL13B |
13 |
5.3 |
267 |
52 |
43 |
46 |
22 |
30 |
39 |
|
01HSSL16B |
16 |
8 |
328 |
60 |
50 |
60 |
24 |
36 |
49 |
|
01HSSL20B |
20 |
12.5 |
388 |
90 |
82 |
75 |
26 |
48 |
62 |
|
01HSSL22B |
22 |
15 |
457 |
80 |
95 |
97 |
33 |
49 |
63 |
|
01HSSL26B |
26 |
21.2 |
535 |
99 |
115 |
123 |
42 |
56 |
69 |
