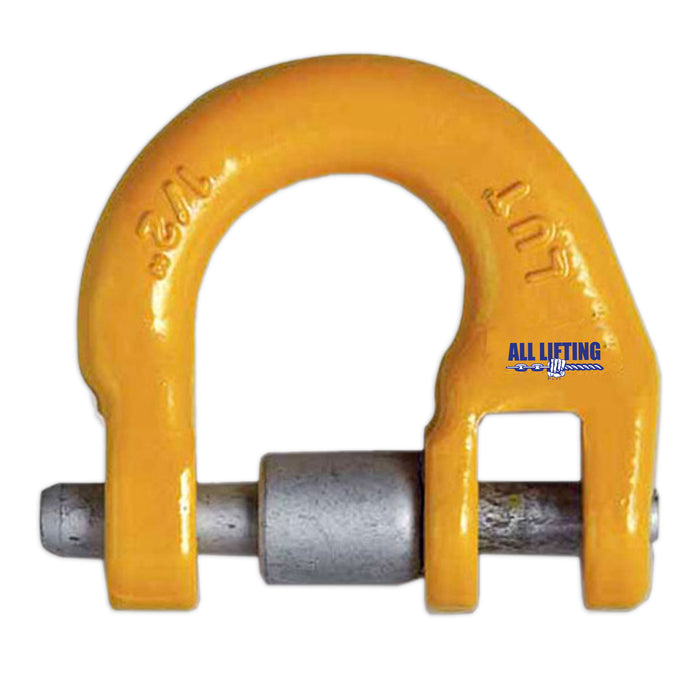

Grade 80 Half Coupling Link Assembly

by All Lifting
$12.34
  • Applications: Chain and wire rope slings



Part # Chain Size (mm) WLL (t) L (mm) A (mm) D (mm) K (mm) Mass (kg)
01CLHALF08 8 2.0 28 18 9 22 0.1
01CLHALF10 10 3.2 34 25 11 26 0.2
01CLHALF13 13 5.3 45 30 16 35 0.4
01CLHALF16 16 8 50 36 19 38 0.6
01CLHALF20 20 12.5 60 42 22 46 1.1
