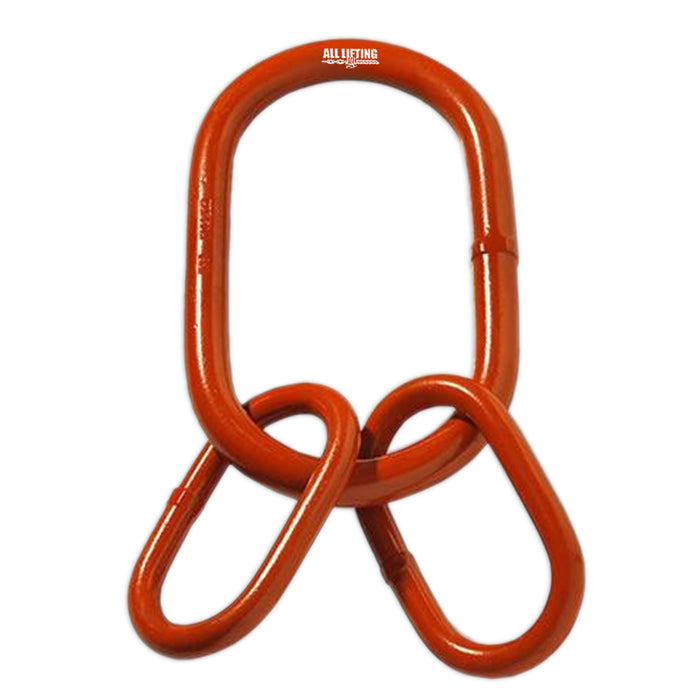

Grade 80 Master Link Multi DNV

by All Lifting
Price on Application
Enquire
  • Designed for use in the offshore industry
  • Certified in accordance with DNV specifications 2-7-1 offshore container and DNV rules for lifting applications-loose gear



Part # WLL (t) H (mm) J (mm) K (mm) T (mm) U (mm) V (mm) Mass (kg) Markings
ACSLMLM28 11.8 270 140 28 147 74 20 5.89 HA-26QA
ACSLMLM32 17.1 270 140 32 200 101 25.5 9.67 HA-32QA
ACSLMLM36 23 270 140 36 200 105 28 11.9 HA-36QA
ACSLMLM40 28.1 280 155 40 210 116 32 16.4 HA-40QA
