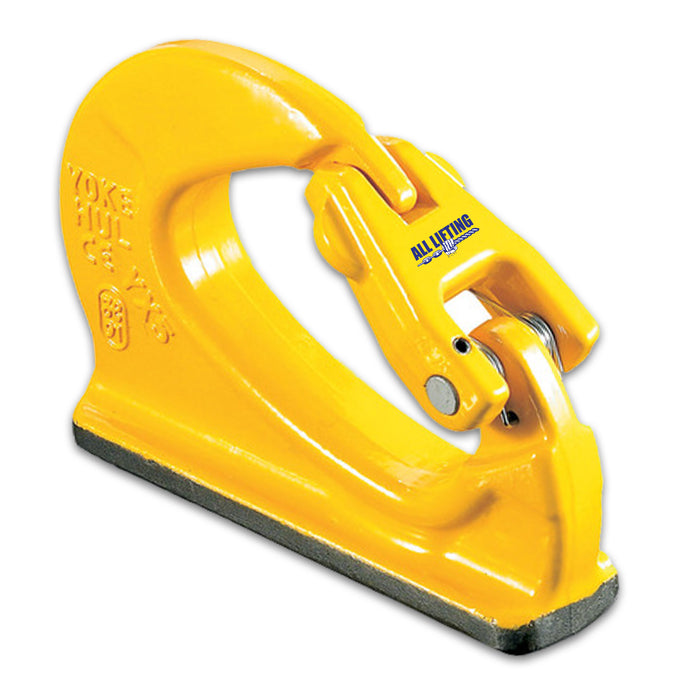

Grade 80 Weld On Hook
- For use as a spreader beam lifting attachment or for fixed anchor point
- Allows for axial loading and positive locking with the safety latch
- Applications: Spreader Beams, excavator bucket lifting points, tie down point.
**Please note colour and dimensions may vary slightly depending on supplier**
Code |
W.L.L (Tonne) |
P (mm) |
L (mm) |
T (mm) |
H (mm) |
W (mm) |
A (mm) |
M (mm) |
01HWO01 |
1 |
18 |
70 |
18 |
27 |
95 |
7 |
4 |
01HWO02 |
2 |
25 |
85 |
20 |
30 |
115 |
8 |
5 |
01HWO03 |
3 |
28 |
107 |
23 |
30 |
133 |
9 |
6 |
01HWO04 |
4 |
28 |
114 |
30 |
38 |
142 |
10 |
7 |
01HWO05 |
5 |
30 |
135 |
31 |
48 |
167 |
12 |
7 |
01HWO08 |
8 |
32 |
137 |
39 |
52 |
176 |
12 |
8 |
