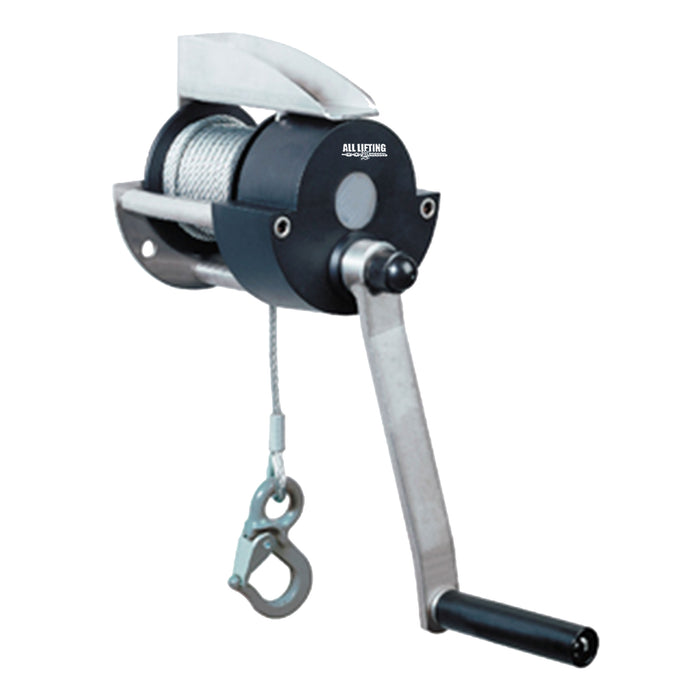

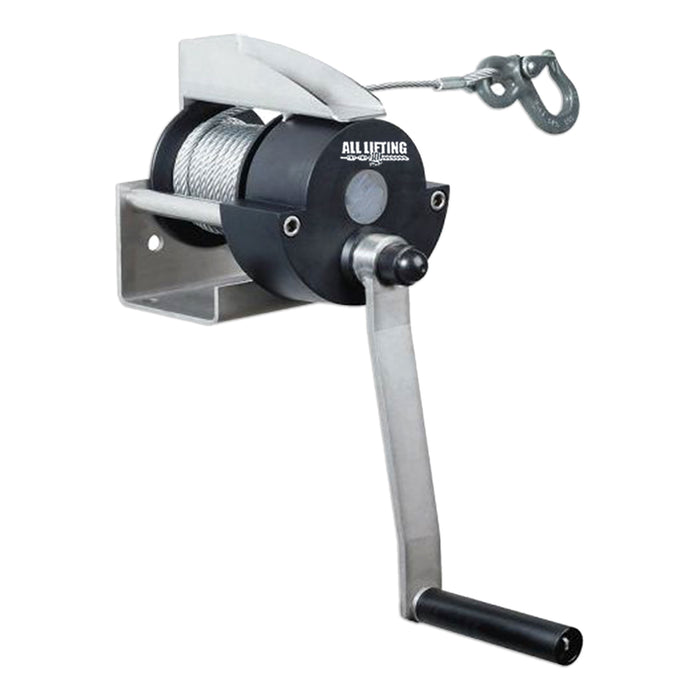

Haacon Stainless Steel Hand Winch
by All Lifting
Price on Application
- Stainless steel winch of the highest quality
- Grade 304 stainless steel
- Quiet running
- Compact Form
- Fully encased
- Self locking
- Folding crank handle
- Wall or bracket mounted
| Mounting | Capacity (kg) | Rope Size (mm) | Rope Length Max. (m) | Drum Dia (mm) | Lift/ Crank Turn (mm) | Gear Ratio | Weight (kg) |
| Wall | 300 | 4 | 29 | 60 | 65 | 3:1 | 5 |
| Wall | 500 | 5 | 22 | 60 | 46 | 4:5 | 5 |
| Bracket | 300 | 4 | 29 | 60 | 65 | 3:1 | 5 |
| Bracket | 500 | 5 | 22 | 60 | 46 | 4:5 | 5 |
