Heavy Duty Snatch Block | All Lifting | Australian Owned

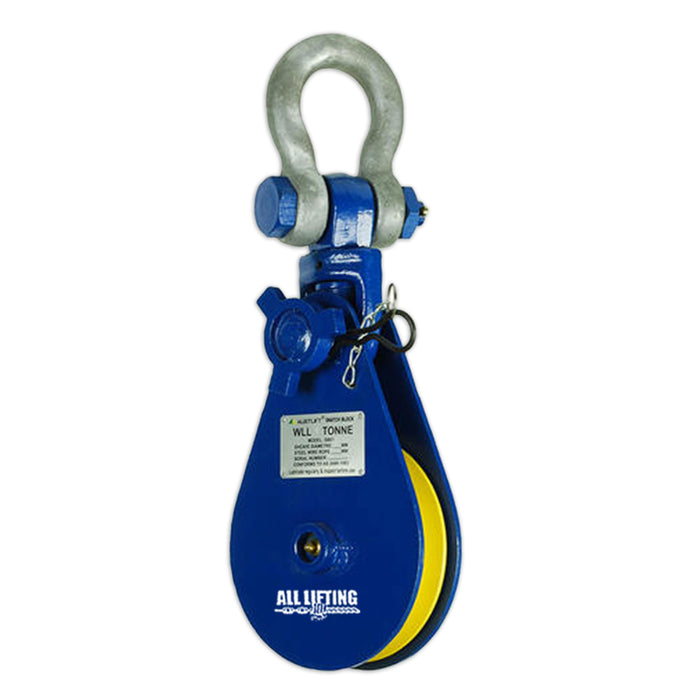

Heavy Duty Snatch Block

by All Lifting
$188.75
Shipping & Handling
Our Heavy Duty Snatch Block is a robust solution designed for demanding lifting and pulling tasks. Manufactured from hi-tensile steel, the body ensures durability and strength, while the cast steel sheave enhances performance. Equipped with grease nipples and roller bearings (applicable for 3-50t models) for smooth operation. The 2-tonne model features brass bush bearings. Each block comes fitted with a swivel bow shackle, and capacities range from 2 tonnes to 50 tonnes. The drop-forged, heat-treated swivel shackle adds to the block's reliability. Compliant with AS2089 standards, this snatch block is a dependable choice. Custom sizes and capacities are available upon request, providing tailored solutions for various applications.

Features

  • Manufactured from hi-tensile steel body
  • Cast steel sheave
  • Grease nipples fitted with roller bearings ( 3-50t)
  • Brass bush bearings on 2t model
  • Blocks come fitted with a swivel bow shackle
  • Capacities available from 2 tonne - 50 tonne
  • Drop-forged, heat-treated swivel shackle
  • Complies with AS2089
  • Other sizes and capacities available at request

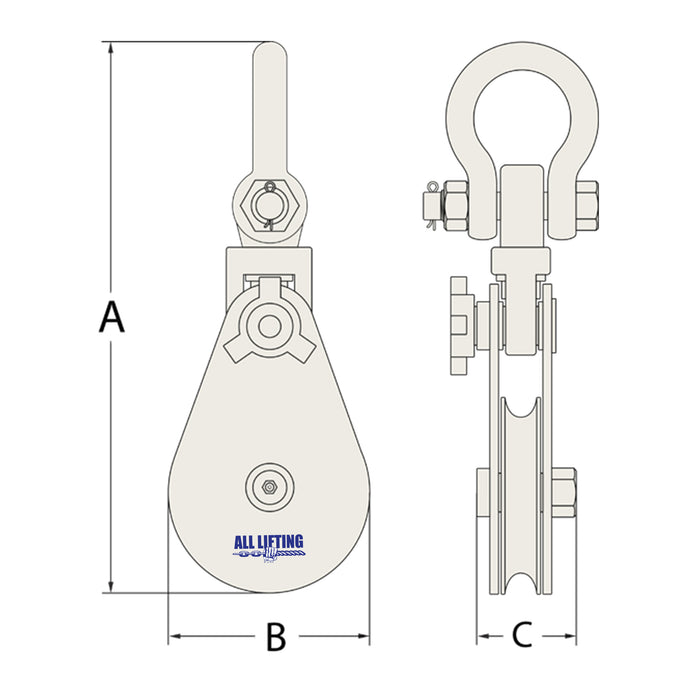

Product Specifications

Shipping & Handling Fees

CODE

Working Load

(Tonne)

Sheave Diameter

(mm)

Wire Rope Diameter

(mm)

Unit Weight

(kg)

(mm)

(mm)

(mm)

149002758-942868270
14904411510-136.136012070
14906415210-1313.840016070
14908615213-161548018080
14912820316-181653021093
149141025418-2037.5680260115
149161230520-2256767310133
149181530524-2665884310133
149302235528-3290952365140
149323051032-362101100510200
xxx5061044-504181140630210
