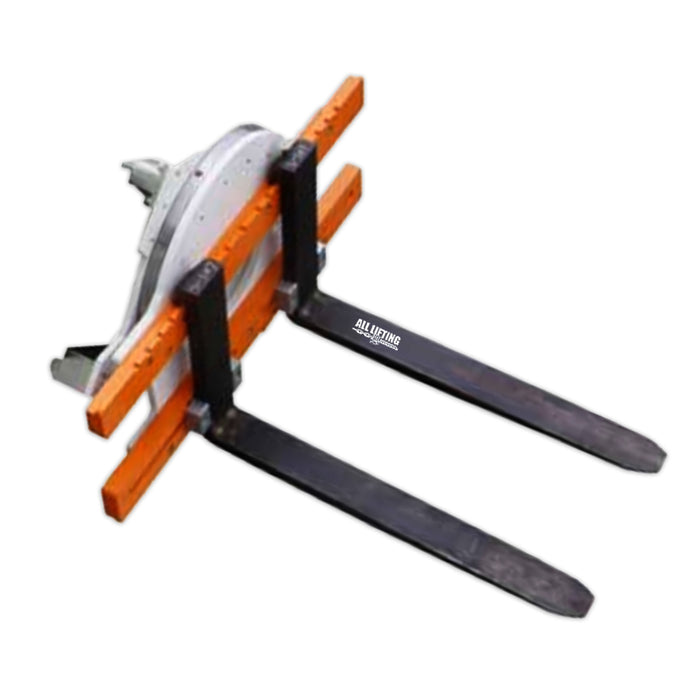

Hydraulic 360 Degree Rotator

by All Lifting
Price on Application
Enquire
  • Increases forklift functionality
  • Allows operator to rotate the loads and empty bins, while maintaining the ability to handle conventional and palletised loads
  • Continuous rotation in both directions
  • Concealed drive motor protected from potential damage
  • Designed to accept standard ISO fork arms
  • Excellent driver visibility

button-download-brochure

*Capacity @ Load Centre



Part # Capacity* (kg@mm) Mounting Class Carriage Width (mm) Min Truck Carriage Width (mm) Max Fork Spacing (mm) VMG (mm) Weight (kg) Lost Load (mm) HMG (mm)
1899XZQ20E-B002 2,000@500 II 1,100 800 955 286 311 120 88
1899XZQ30E-B001 3,000@500 II 1,100 800 955 286 378 188 145
1899XZQ30D-C001 3,000@500 III 1,100 800 955 286 378 188 145
1899XZQ45D-C001 4,500@600 IIII 1,200 1,016 1,130 359 550 192 145
1899XZQ60E-D001 6,000@500 IV 1,200 1,016 1,021 310 577 235 143
