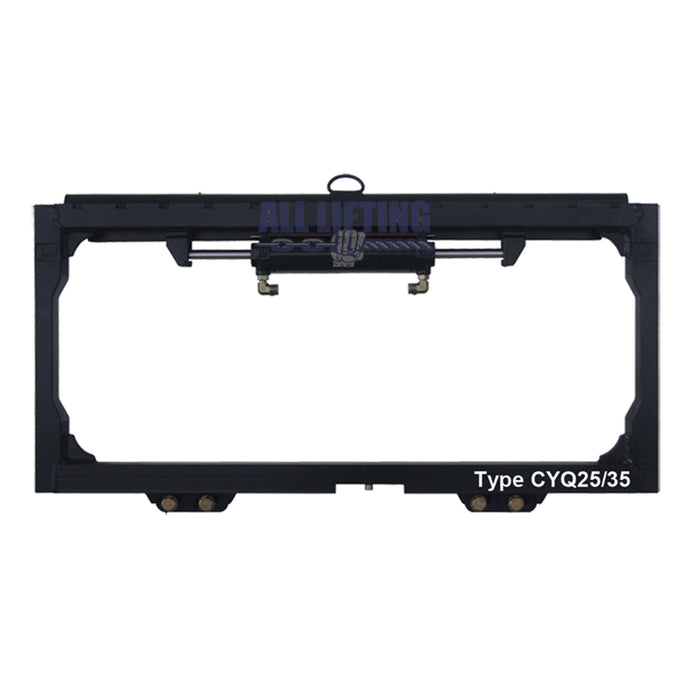

Hydraulic Sideshifts

by All Lifting
Price on Application
Enquire

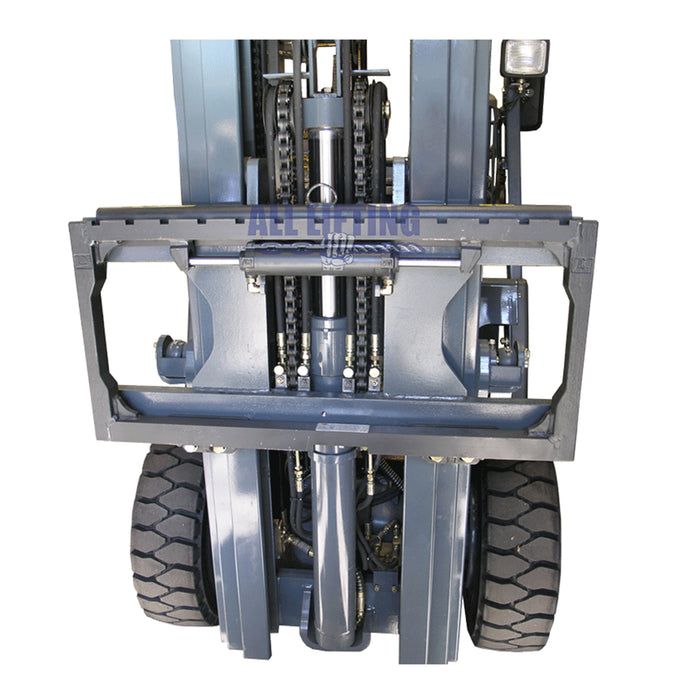

  • Forklift attachment that allows lateral load movement
  • Load can be placed into position without various movements of the forklift
  • Quick and easy to install, no welding required
  • Used in warehousing, transport, confined space applications
  • Maximum residual capacity due to minimum weight and lost load
  • Equal side-shifting force
  • Load guard options available

*Capacity at Load Centre



Part # Frame Width (mm) Capacity*(kg/mm) Mounting Class Min. Truck Carriage Width (mm) Weight (kg) Lost Load (mm) HCG (mm)
189CYQ25F-1020 1020 2500@600 II 895 59 62 27
189CYQ25F-1200 1200 2500@600 II 1040 60 62 27
189CYQ35F-1100 1100 3500@600 III 895 64 62 27
189CYQ35F-1200 1200 3500@600 III 1040 71 62 27
189CYQ45D-D001-1100 1100 4500@600 III 965 142 64 33
189CYQ45D-D001-1200 1200 4500@600 III 1016 156 64 33
189CYQ68D-D001-1245 1245 6800@600 IV 1170 225 84 43
189CYQ68D-D001-1270 1270 6800@600 IV 1170 240 84 43
