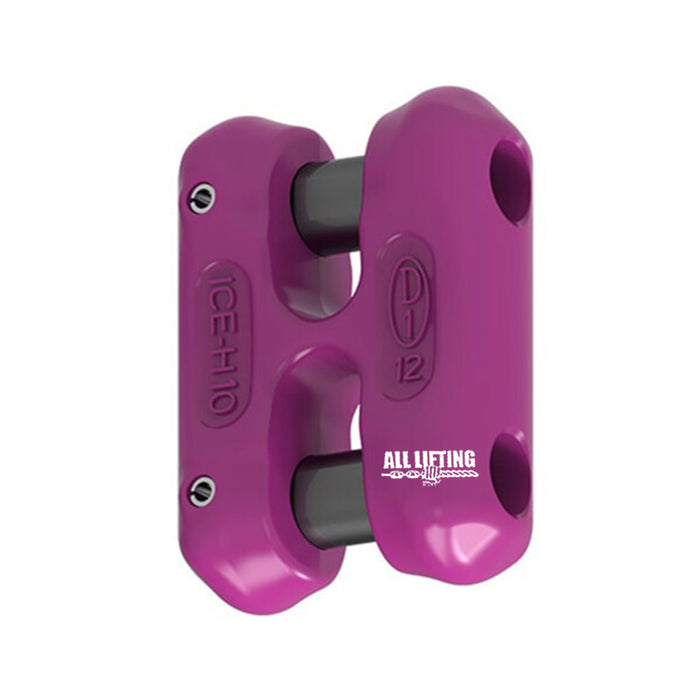

ICE Grade 120 Chain Connector IH

by All Lifting
Price on Application
  • Create endless chain with ease and quickly
  • Pitch of the H-Connector analogue chain pitch
  • Compact and easy to handle
  • Wear resistant heat treated body
  • Enhanced slide over corners
  • Adapts to the chain and components

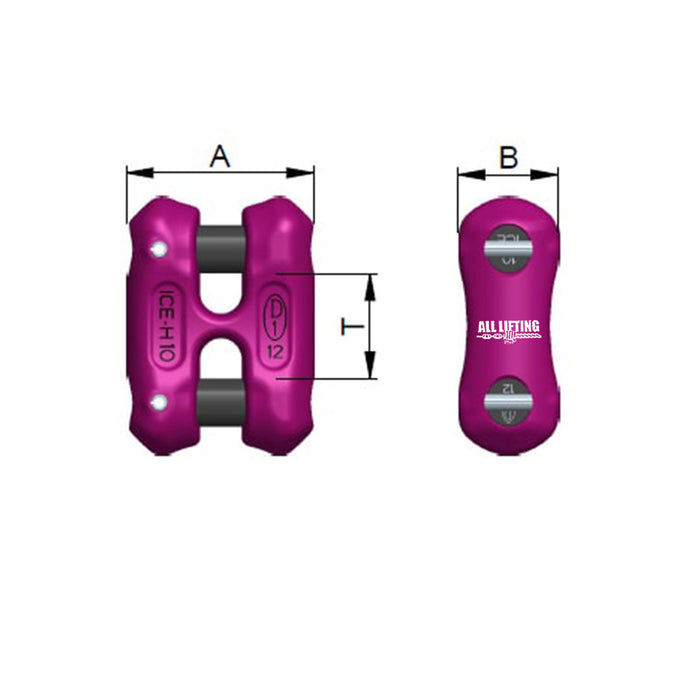

Chain (mm) Model WLL (kg) A (mm) B (mm) T (mm) Weight (kg)
6 IH6 1800 34 19.6 18 0.11
8 IH8 3000 45 25.5 24 0.26
10 IH10 5000 56 31.5 30 0.55
13 IH13 8000 73 40 39 1.16
16 IH16 12500 89 49 48 2.16
