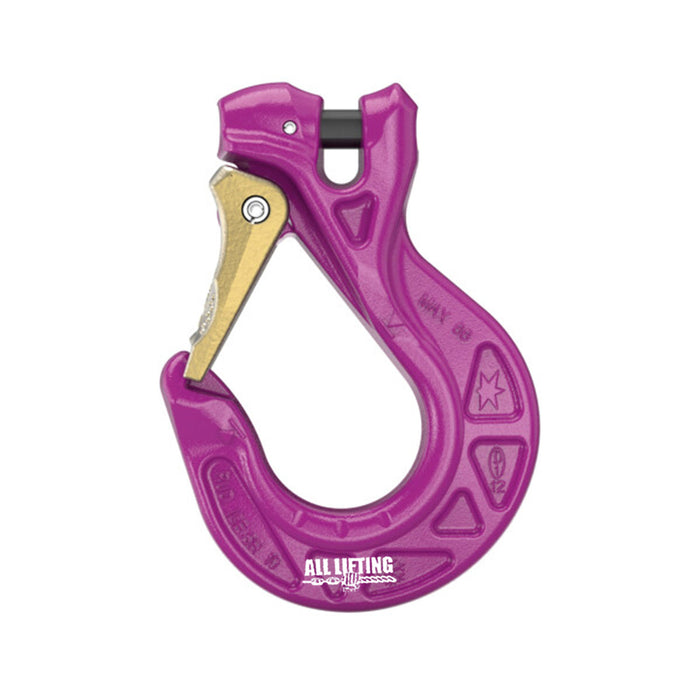

ICE Grade 120 Clevis Star Hook

by All Lifting
Price on Application
  • Forged, tempered and ergonomic safety latch, with a triple coiled, double leg-spring in stainless steel
  • Up to 25 % lighter than Grade 8 hooks of the same capacity
  • Large width of the hook throat equals the dimensions of a Granit Super Hook of the next size
  • Edge protection – increased section at the hook side and top for the safety latch
  • Wear ribs protect the first chain link into the clevis
  • Non protruding, thickened tip hook prevents dangerous use
  • Marker points show hook width on inspection
  • Patented wear marks show instantly when hook has reached allowed statutory
  • Suitable down to -60°C
  • Excedes EN Standards for side loading

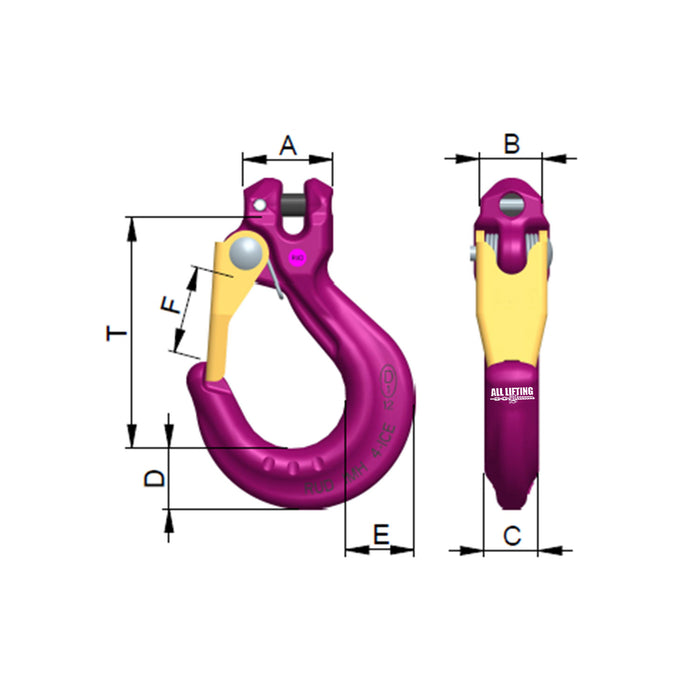

Chain (mm) WLL (t) Weight (kg) A (mm) B (mm) C (mm) D (mm) F (mm) T (mm)
6 1.8 0.69 48 28 18 26 30 97
8 3.0 1.1 45 36 20 29 36 110
10 5.0 1.9 56 43 25 37 41 127
13 8.0 3.5 85 52 31 48 50 153
16 12.5 5.5 94 58 38 56 58 184
