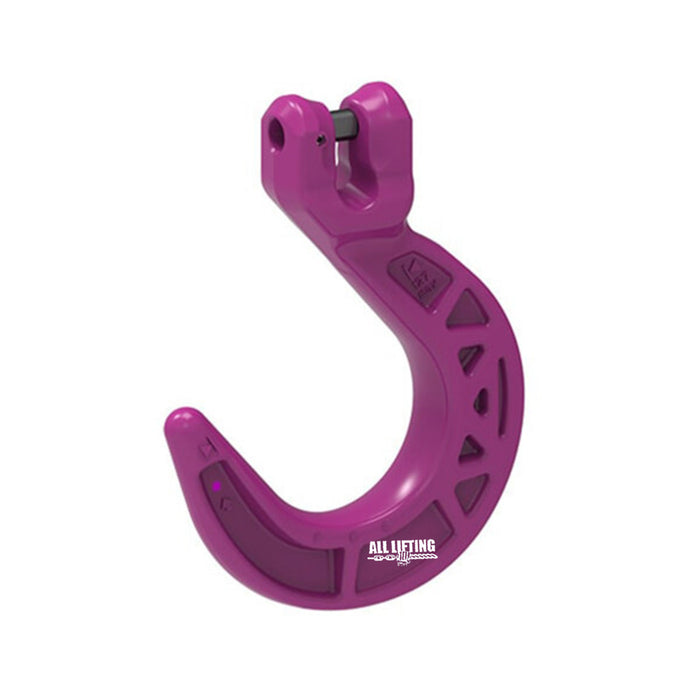

ICE Grade 120 Foundry Hook
by All Lifting
Price on Application
- Container hook with large throat opening
- Not used for general chain sling applications
- Suitable for foundry applications and usually bulky attachment points
Not suitable for for overhead lifting. Use only when unintentional unhooking is impossible.

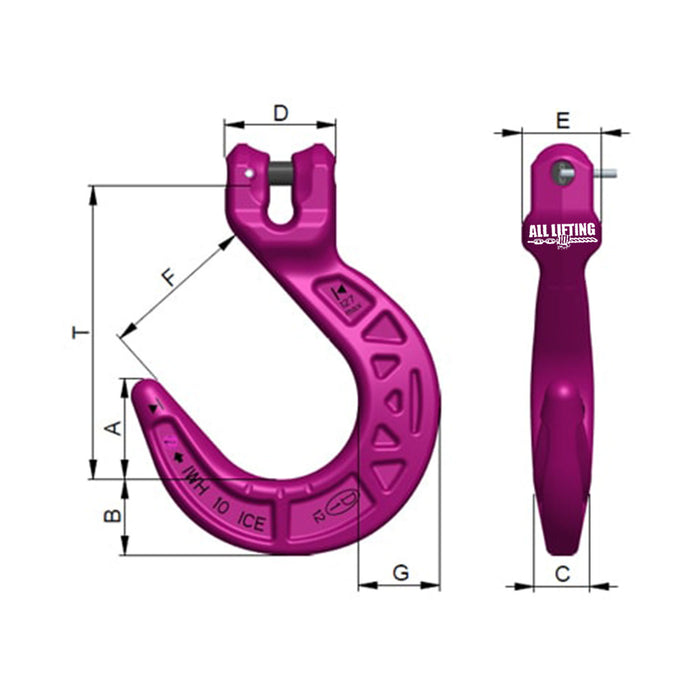

| Chain (mm) | WLL (t) | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | T (mm) |
| 6 | 1.8 | 1.03 | 41 | 31 | 24 | 42 | 29 | 64 | 32 | 121 |
| 8 | 3.0 | 1.76 | 49 | 37 | 29 | 50 | 36 | 76 | 40 | 143 |
| 10 | 5.0 | 3.01 | 58 | 44 | 31 | 64 | 46 | 90 | 47 | 168 |
| 13 | 8.0 | 4.7 | 66 | 50 | 39 | 75 | 56 | 100 | 55 | 193 |
| 16 | 12.5 | 6.51 | 75 | 56 | 43 | 90 | 58 | 114 | 61 | 208 |
