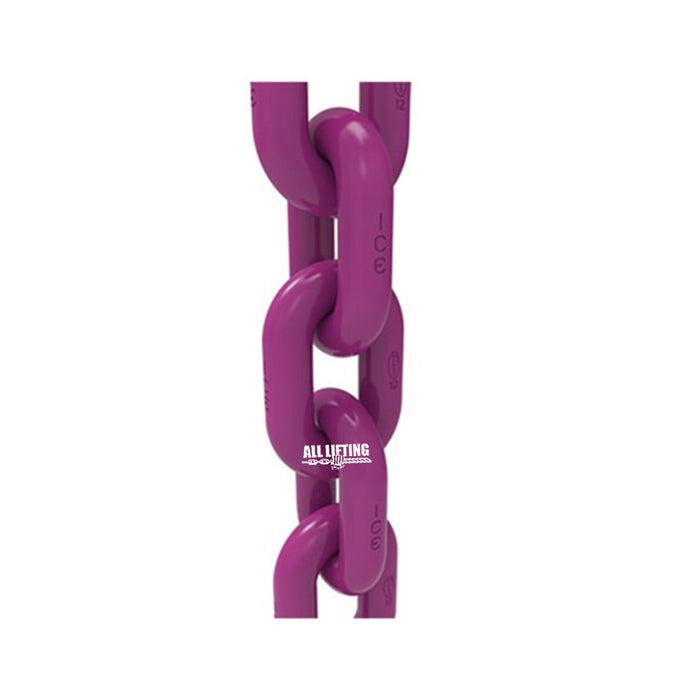

ICE Grade 120 Lifting Chain
by All Lifting
Price on Application
- High quality steel chain
- Manufactured and tempered with a patented stainless steel material
- Extremely light in construction
- High hardness reduces damage to the chain caused by sharp and rough edges
- High abrasion toughness and crack resistance
- Ideal for extreme hot or cold temperatures -60 °C up to +300 °C
- Double coating system for better surface protection
- Production and batch numbers stamped at regular intervals
- Special heat treatment for longer life
Extremely temperature resistant-60°C up to +300°C Resistance to brittle fracture < -70°C.
Overheating Indicator:
Special ICE Pink powder coating indicates the temperature in which the chain can be safely used. The ICE-Pink colour turns brown-black if used in temperatures of more than 300°C (prohibited).

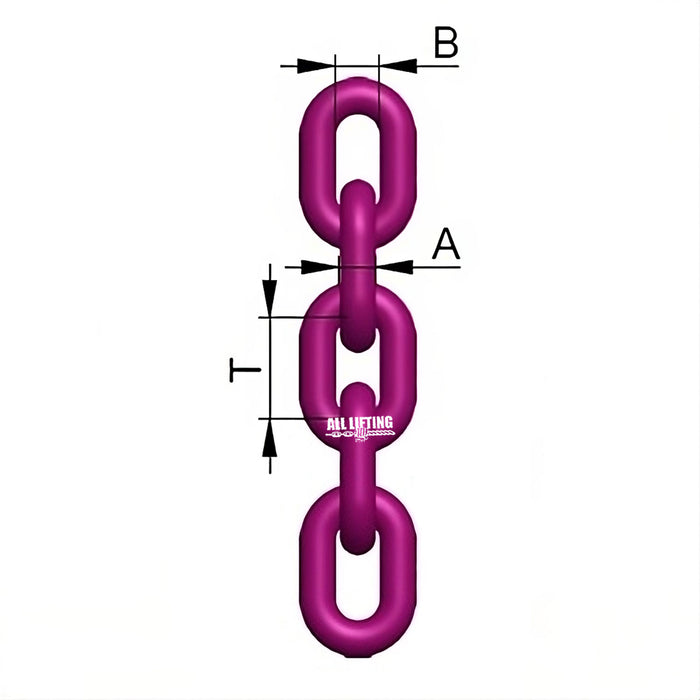

| Chain Size A (mm) | WLL (kg) | B (mm) | T (mm) | Weight (kg) |
| 4 | 800 | 5.2 | 12.0 | 0.44 |
| 6 | 1800 | 7.8 | 18.0 | 0.98 |
| 8 | 3000 | 10.0 | 24.0 | 1.66 |
| 10 | 5000 | 13.0 | 30.0 | 2.62 |
| 13 | 8000 | 17.0 | 39.0 | 4.25 |
| 16 | 12500 | 21.0 | 48.0 | 6.72 |
