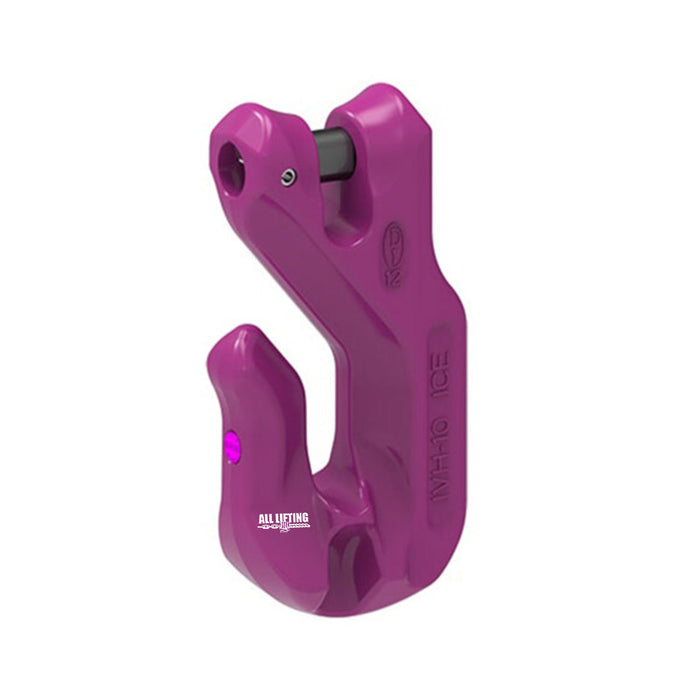

ICE Grade 120 Shortening Hook

by All Lifting
Price on Application
  • High dynamic strength
  • No reduction of the working capacity
  • Thickened tip of hook to avoid incorrect use such as hinge of the chain
  • Curved insertion opening prevents the chain from easily falling out easy
  • Complies with DIN 5692 for shortening components

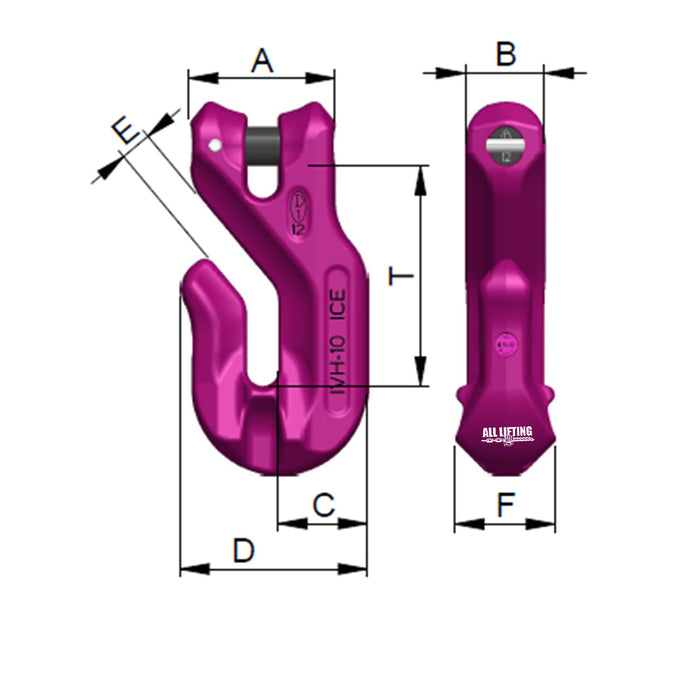

Chain (mm) WLL (t) Weight (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) T (mm)
6 1.8 0.27 34 18 20 44 7.5 22 53
8 3.0 0.5 43 24 26 55 9.5 29 67
10 5.0 1.2 55 30 34 71 12 38 86
13 8.0 2.5 70 38 43 90 15 48 105
16 12.5 4.5 86 46 53 110 18.5 59 128
