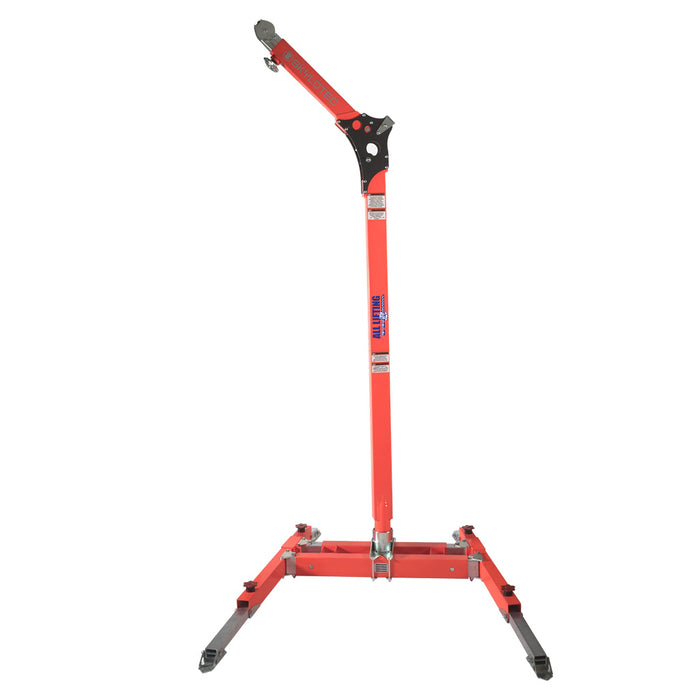

Jackpod Davit Arm
by All Lifting
Price on Application
Flexible fall protection for work in confined spaces
- Portable system uses a small working base area
- Lightweight and easy to transport
- Suitable for use as anchorages for confined space entry
- Swivelling system that can be used for vertical applications
- Easy to install thanks to a simple plug-in mechanism
- Made from high-quality aluminium with a galvanized steel finish
- Combine with winches and other fall arrest devices
- Available in standard tripod,base mount, wall mount or floor mount
- Enquire to find out more about customisable system
Set of components:
1 x JACKPOD DAVIT Upper Mount
1 x JACKPOD DAVIT Lower Mount
1 x JACKPOD BASE portable
| Model | Total Height(mm) | Base Width (mm) | Total Weight (kg) | Max. Load Capacity | Max. No of People | Material | Standard |
| JP-100-1 | 2186 - 2416 | 1000 - 1700 | 42.6 | 280 | 2 | Aluminium, Steel | EN 795 |
| JP-100-2 | 2490 - 2720 | 1000 - 1700 | 44.5 | 280 | 2 | Aluminium, Steel | EN 795 |
| JP-100-3 | 2491 - 2711 | 1000 - 1700 | 44.5 | 280 | 2 | Aluminium, Steel | EN 795 |
| JP-100-4 | 2795 -3015 | 1000 - 1700 | 46.4 | 280 | 2 | Aluminium, Steel | EN 795 |
