Swivel Lifting Point - Kanga Lifting

by All Lifting
$114.94

Incl. GST

Shipping & Handling
  • Description

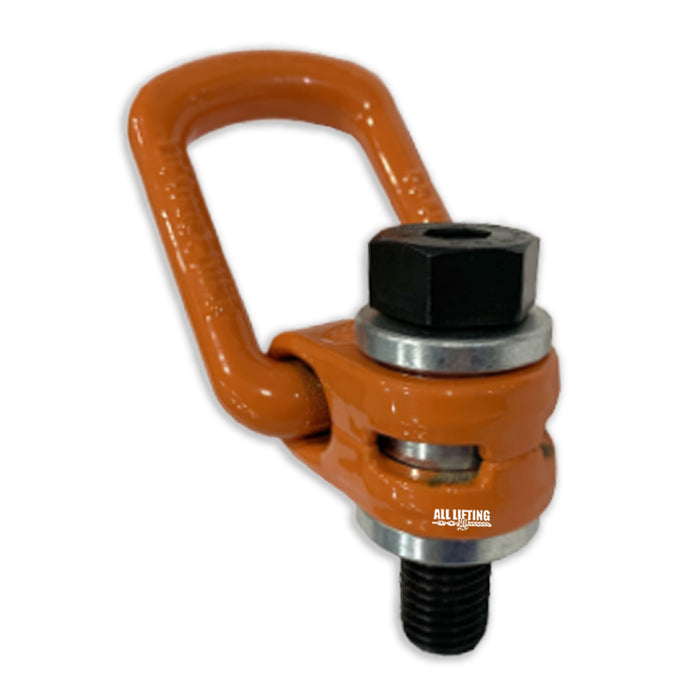

    Our Kanga Lifting Swivel Lifting Point is a robust and versatile attachment designed for machinery and general lifting and lashing applications. It features a full 360° swivel with a 180° pivot function for optimal positioning. Manufactured from quenched and tempered forged alloy steel, the hoist ring and bail deliver superior strength and reliability. Rated for 100% working load at a 90° angle, each unit undergoes 100% Magnaflux crack detection and 20,000 cycle fatigue testing to ensure maximum safety and performance in demanding conditions.

    Features

    • 360° swivel with 180° pivot function
    • Made from quenched and tempered forged alloy steel
    • 100% rated at 90° angle
    • 100% Magnaflux crack detection
    • 20,000 cycle fatigue tested
    • Metric thread bolts, grade 10.9
    • Available with standard or long bolt types
    • Supplied with test certificates
    • Ideal for machinery lifting and lashing applications
  • Download

  • Shipping & Handling Fees

    We are pleased to offer free pick up from a branch or delivery that includes shipping and handling fees.

    Local Pick Up - FREE

    We have 5 convenient locations where you can pick up your order including:
    • Rocklea QLD
    • Glendenning NSW
    • Campbellfield VIC
    • Cameron Park NSW
    • Dandenong VIC

    Shipping & Handling Fees

    A shipping and handling fee applies to all orders that aren’t picked up from an All Lifting branch.
    All shipping fees are calculated at checkout based on the value of your cart.

    For full terms & conditions including our refunds policy please visit our Shipping Terms and Conditions

    Cart Value $ Shipping and Handling Fees
    $0-$50 $25
    $50.01-$100 $35
    $100.01-$300 $40
    $300.01-$500 $50
    $500.01-$800 $70
    $800.01-$1,000 $100
    $1,000.01-$2,000 $300
    $2,000.01-$3,000 $400

Read terms, conditions & refund policy here

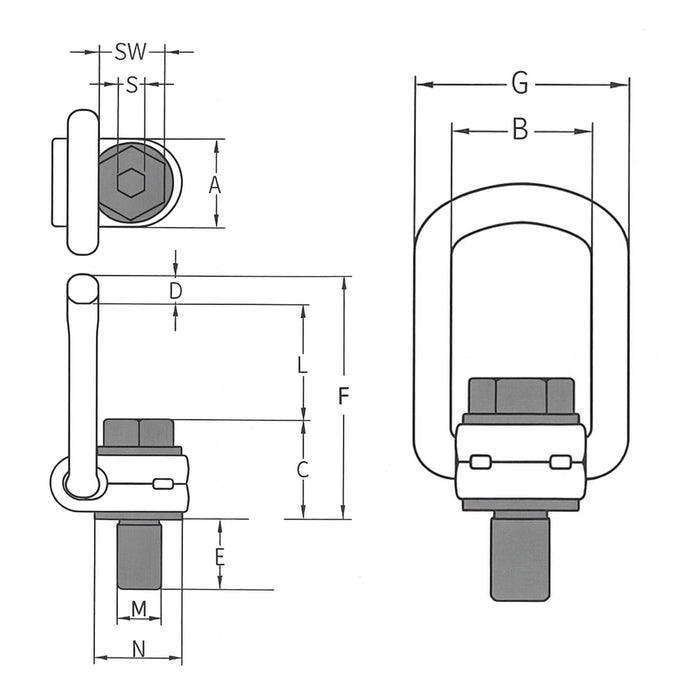

Product Specifications

Part
Number
Size W.L.L
(Tonne)
Weight
(Kg)
M Dimensions in (mm)
E A B C D F G L N S SW
9958 M8 0.3 0.5 8 x 1.25 11 34 37 42 14 98.5 57 42.5 31 6 13
9960 M10 0.63 0.5 10 x 1.25 16 34 37 44 14 98.5 57 40.5 31 6 16
9962 M12 1.0 0.5 12 x 1.75 18 34 37 45 14 98.5 57 39.5 31 8 18
9964 M16 1.5 0.5 16 x 2.00 24 34 37 48 14 98.5 57 36.5 31 10 24
9966 M20 2.5 1.5 20 x 2.50 30 50 54 58 16.5 143 82 68.5 45 12 30
9968 M24 4.0 1.5 24 x 3.00 36 50 54 61 16.5 143 82 65.5 45 14 36
9970 M30 5.0 3.5 30 x 3.50 48 60 65 82 22 170 99 66 59 17 46
- M36 7.0 3.5 36 x 4.00 54 60 65 85 22 170 99 63 59.5 22 55
- M42 10.0 6.5 42 x 4.50 72 77 85 106 27 226.5 123 93.5 69 22 65
