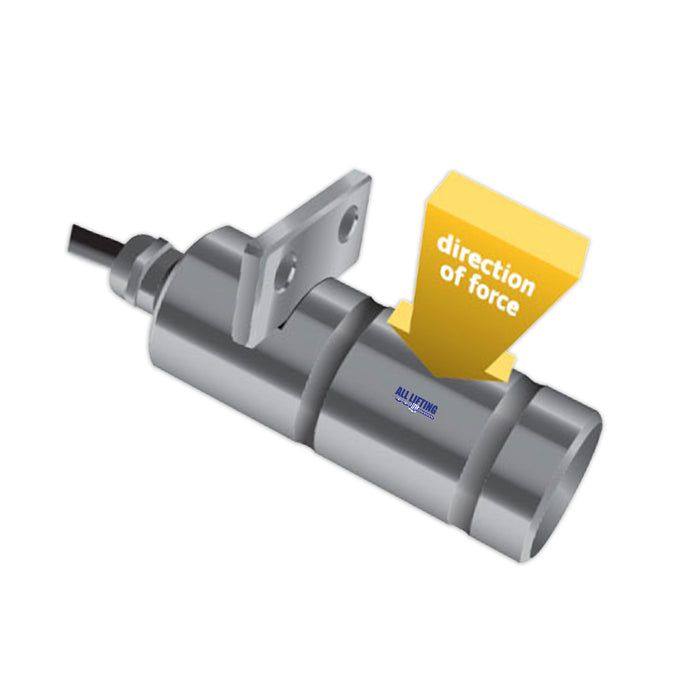

Load Pin Load Cell
by All Lifting
Price on Application
- Operating Temp: -20 to +70 °C
- Accuracy: +/- 1% of applied load
- Protection: IP67 (IP68 available as option)
- Load measuring pin designed for general use
- Machined from high tensile steel
| Capacity (t) | Resolution (t) | Weight (kg) |
| 0.5 | 0.0002 | 0.17 |
| 1 | 0.0005 | 0.2 |
| 2.5 | 0.001 | 0.39 |
| 3.5 | 0.001 | 0.58 |
| 6.5 | 0.002 | 1.2 |
| 15 | 0.002 | 2.3 |
| 25 | 0.005 | 4.7 |
| 50 | 0.01 | 8 |
| 100 | 0.05 | 11 |
| 250 | 0.1 | 29 |
| 500 | 0.2 | 78 |
| 750 | 0.2 | 145 |
| 1000 | 0.5 | 274 |
| 1500 | 0.5 | 388 |
| Capacity (t) | A | B | C | D |
| 0.5 | 24 | 36 | 70 | 20 |
| 1 | 35 | 49 | 80 | 20 |
| 2.5 | 45 | 70 | 100 | 25 |
| 3.5 | 50 | 75 | 105 | 30 |
| 6.5 | 62 | 95 | 125 | 40 |
| 15 | 75 | 114 | 150 | 50 |
| 25 | 89 | 152 | 195 | 63 |
| 50 | 102 | 178 | 225 | 75 |
| 100 | 110 | 190 | 230 | 88 |
| 250 | 130 | 220 | 300 | 125 |
| 500 | 225 | 370 | 440 | 170 |
| 750 | 295 | 500 | 590 | 200 |
| 1000 | 350 | 612 | 712 | 250 |
| 1500 | 430 | 731 | 832 | 275 |
